Repair Procedures: Assembly

NOTE:
  • Install the component to the specified torque.

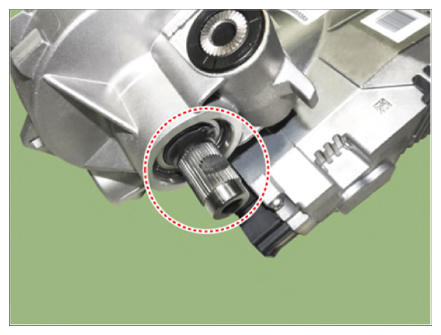

  • Assemble the steering universal joint by taking care of the groove so that it can be bolted.
G13835013Courtesy of KIA MOTORS AMERICA, INC.
  1. Assemble in the reverse order of disassembly.
