Repair Procedures: Removal

Remove the MDPS assembly.
(Refer to " Removal ")

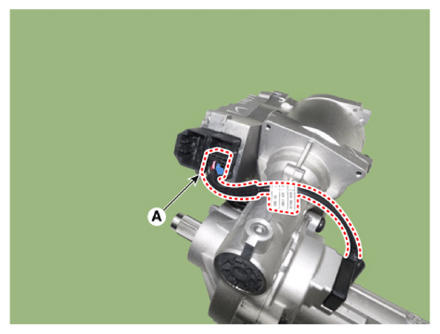

Disconnect the MDPS System connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information

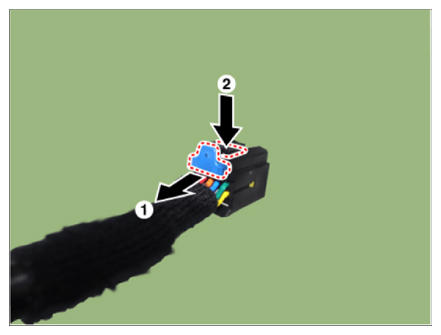

Disconnect the connector in the following order.

Courtesy of KIA MOTORS AMERICA, INC.

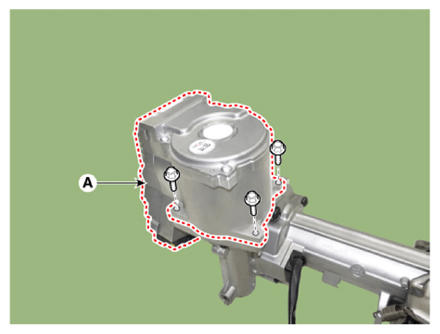

Remove the MDPS System (A) after loosening the mounting bolts.
Tightening torque:

8.0 -12.0 N.m (0.8 - 1.2 kgf.m, 5.9 - 8.8 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
