Dust Cap

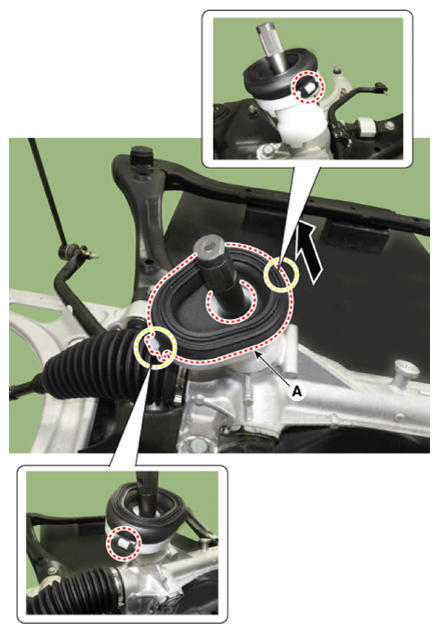

  1. Remove the dust cap cover (A).
    G13835053Courtesy of KIA MOTORS AMERICA, INC.

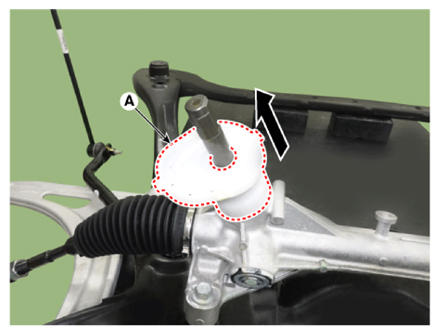

  2. Remove the dust cap (A).
    G13835054Courtesy of KIA MOTORS AMERICA, INC.
  3. Replace the tie rod end with a new one.
    NOTE:

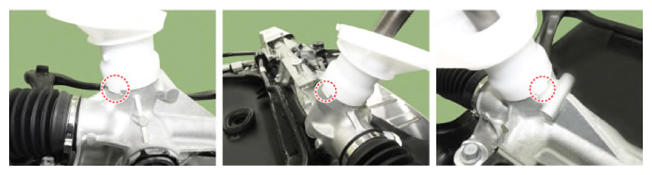

    • Refer to the illustration below, adjust the parts to the correct position during assembly.
      G13835055Courtesy of KIA MOTORS AMERICA, INC.
    • Assemble the dust cap after cleaning the pinion shaft.
  4. Check the alignment.

    (Refer to " ALIGNMENT  ")
