Connector And Terminal Function

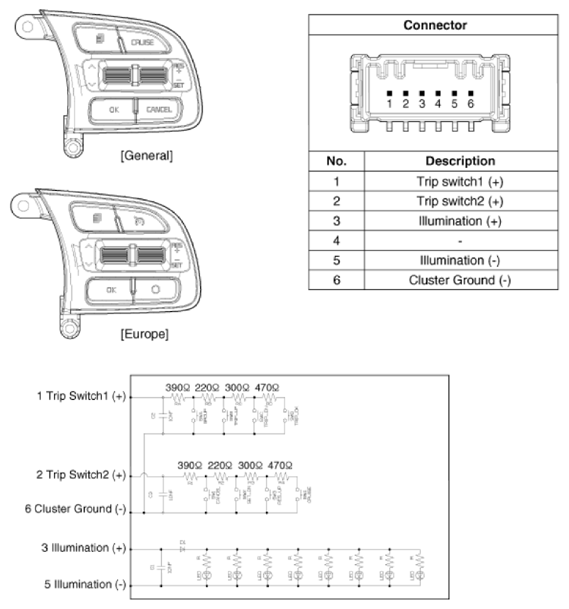

[Trip + Cruise]

G13377283Courtesy of KIA MOTORS AMERICA, INC.

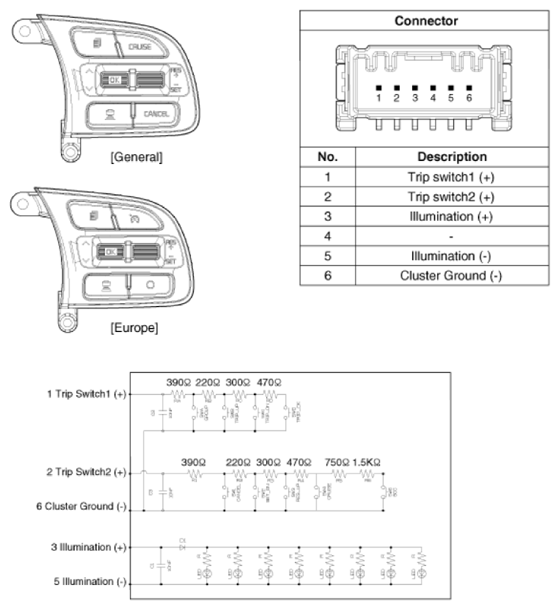

[Trip + Cruise + SCC]

G13377284Courtesy of KIA MOTORS AMERICA, INC.
