Repair Procedures: Disassembly

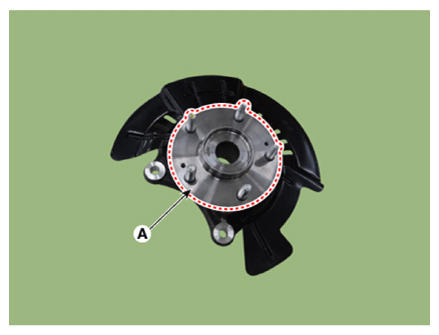

Remove the hub bearing (A) from the knuckle.
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

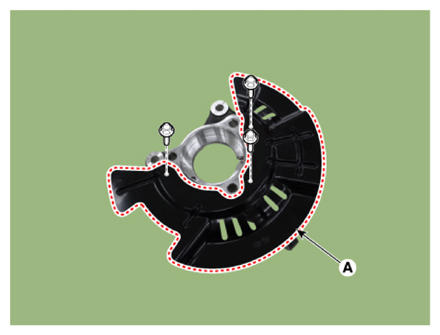

Remove the dust cover (A) from the knuckle.
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Assemble in the reverse order of disassembly.
