Repair Procedures: Replacement
- Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")

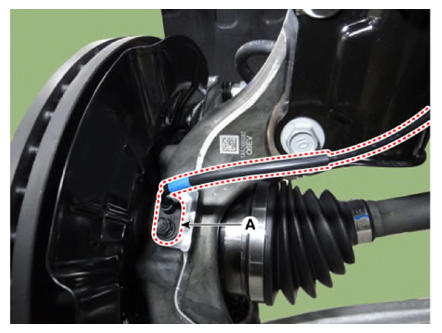

- Disconnect the front wheel speed sensor (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

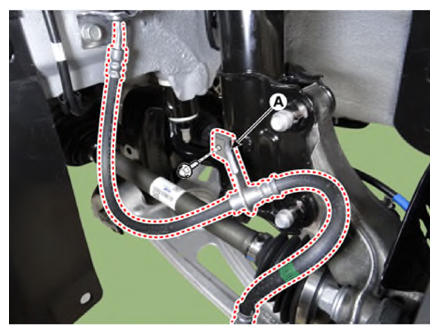

- Disconnect the brake hose bracket (A) by loosening the bolt.
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

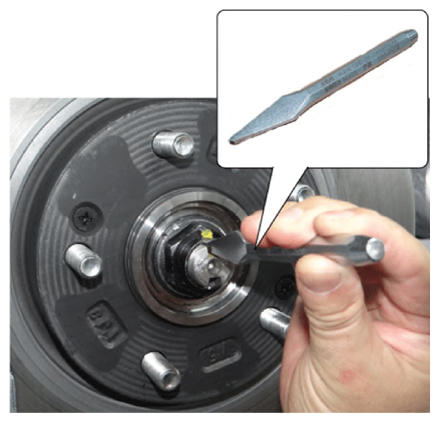

- By hammering on a chisel, unlock the driveshaft lock hub nut caulking.
- Remove the caulking nut (A) from the front axle.
Tightening torque:
274.6 - 294.2 N.m (28.0 - 30.0 kgf.m, 202.5 - 217.0 lb.ft)
NOTE:- The driveshaft lock nut must be replaced with new one. When replacing the drive lock hub nut, use only the nut with screw thread (A) on the end.
- Tighten the driveshaft lock hub nut to the specified tightening torque, and caulk by using a chisel and hammer.
- If there are two key seats, perform on all two seats.
Caulking depth (A) : 1.5 mm (0.0591 in)
- The driveshaft lock nut must be replaced with new one. When replacing the drive lock hub nut, use only the nut with screw thread (A) on the end.
- Remove the front brake disc.
(Refer to Brake System - "FRONT DISC BRAKE ")

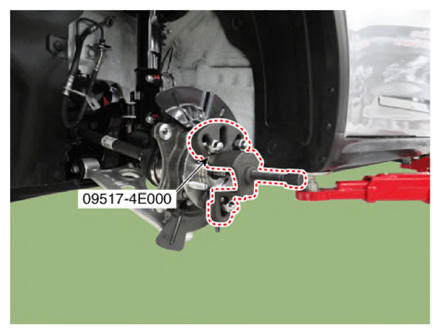

- Using a SST (09517-4E000), disconnect the driveshaft from the axle hub.NOTE: Do not pull or twist excessively to remove the axle when the drive shaft is disassembled.

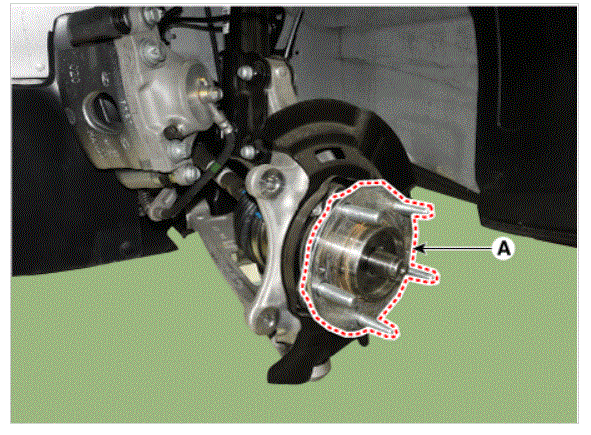

- Loosen the bolts and remove the hub bearing assembly (A) from the front knuckle.
Tightening torque:
88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)
- Install in the reverse order of removal.
