Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery (-) cable.
    CAUTION: Disconnect the battery negative terminal and wait for at least thirty seconds before beginning work.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

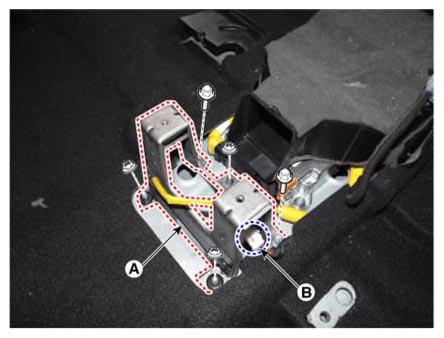

  3. Separate the connector (B), unfasten the locking bolt, and nut then remove the console rear mounting bracket (A).
    G13212494Courtesy of KIA MOTORS AMERICA, INC.

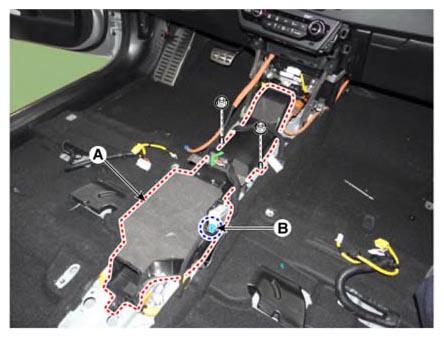

  4. Separate the connector (B), unfasten the locking nut and then remove the rear air duct (A).
    G13212495Courtesy of KIA MOTORS AMERICA, INC.

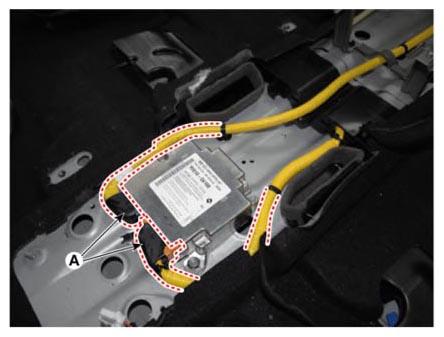

  5. Pull the locking lever of the airbag system control module (SRSCM) connector and remove the connector (A).
    G13212496Courtesy of KIA MOTORS AMERICA, INC.

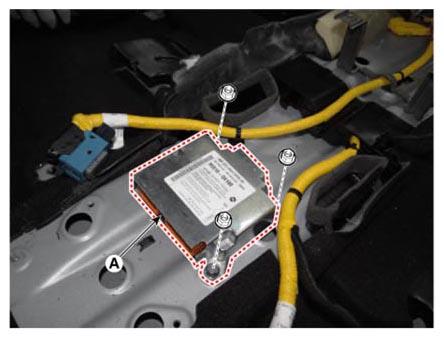

  6. Unscrew the nuts and remove the airbag system control module (A).

    Tightening torque  :

    8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.3 lb.ft)

    G13212497Courtesy of KIA MOTORS AMERICA, INC.
