Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

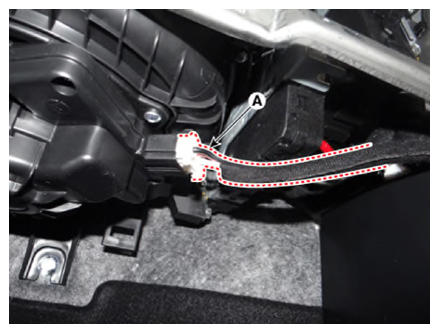

  3. Disconnect the blower motor connector (A).
    G13204236Courtesy of KIA MOTORS AMERICA, INC.

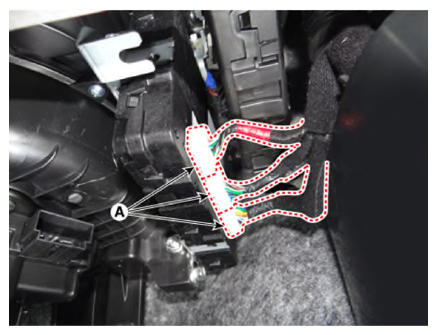

  4. Disconnect the body control module connectors (A).
    G13204237Courtesy of KIA MOTORS AMERICA, INC.

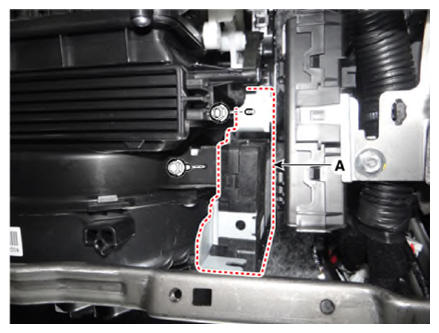

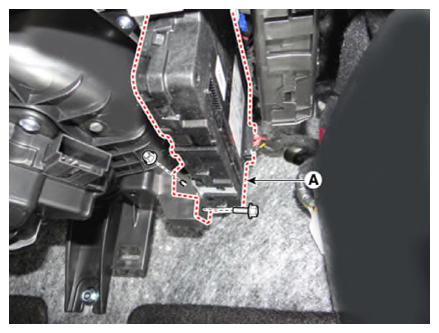

  5. Remove the body control module (A) after loosening the mounting bolts and nuts.
    G13204238Courtesy of KIA MOTORS AMERICA, INC.
    G13204239Courtesy of KIA MOTORS AMERICA, INC.

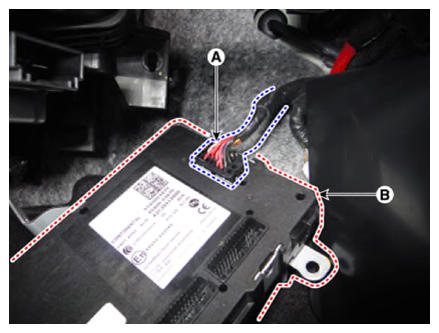

  6. Remove the body control module (B) after disconnecting the connector (A).
    G13204240Courtesy of KIA MOTORS AMERICA, INC.
