Door Outside Handle

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door outside handle.
(Refer to Body - "FRONT DOOR OUTSIDE HANDLE ")

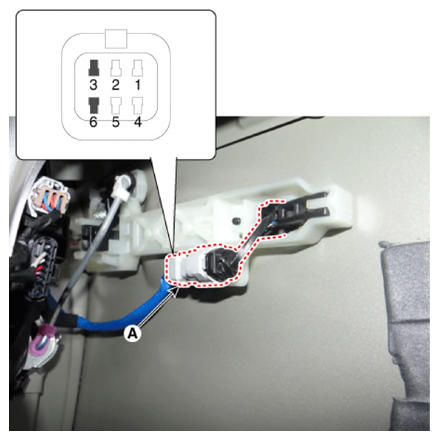

Disconnect the front door outside handle connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

Check for continuity between terminals No 3 and No 6.

Courtesy of KIA MOTORS AMERICA, INC.

No	Description
1	Door antenna (+)
2	Pocket lamp LED (+)
3	Door lock/unlock button switch
4	Door antenna (-)
5	Pocket lamp LED (-)
6	Door lock/unlock button switch ground

Courtesy of KIA MOTORS AMERICA, INC.
