Smart Key Code Saving

  1. Connect the VCI II in driver side crash pad lower panel, turn the power on KDS.
  2. Select the vehicle model and then do "Smart key code saving".

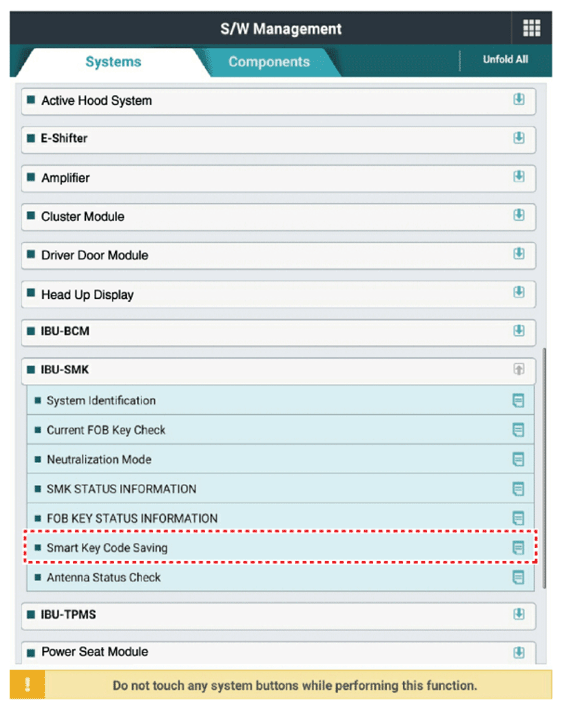

    G13438930Courtesy of KIA MOTORS AMERICA, INC.

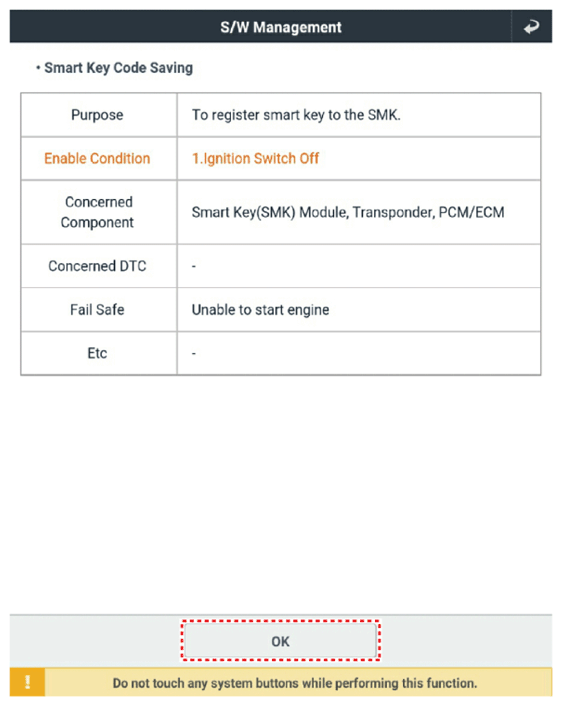

    G13438931Courtesy of KIA MOTORS AMERICA, INC.
  3. After selecting "Smart Key Code Saving" menu, push "OK" button, then the screen will be shown as below.

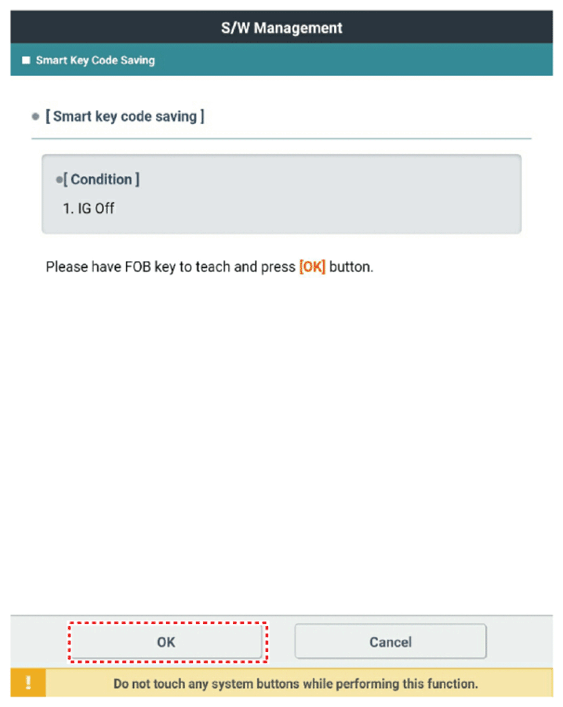

    G13438932Courtesy of KIA MOTORS AMERICA, INC.
  4. After teaching new smart key, push "OK" button.
  5. Input the "Pin code" for first key teaching.

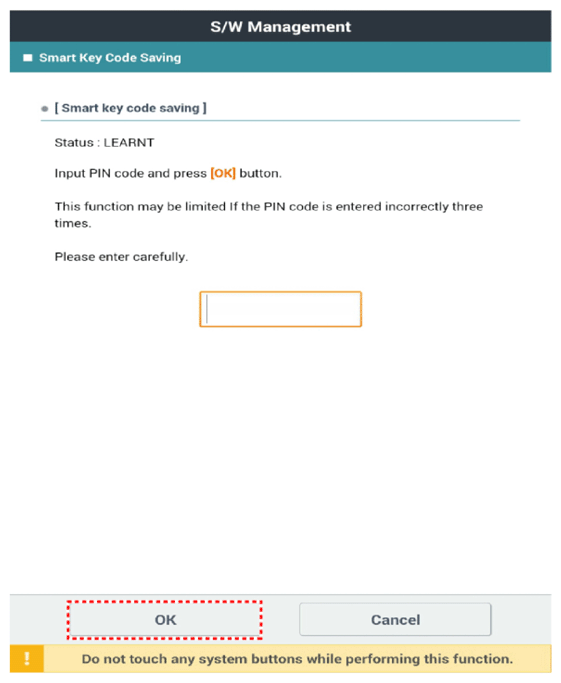

    G13438933Courtesy of KIA MOTORS AMERICA, INC.

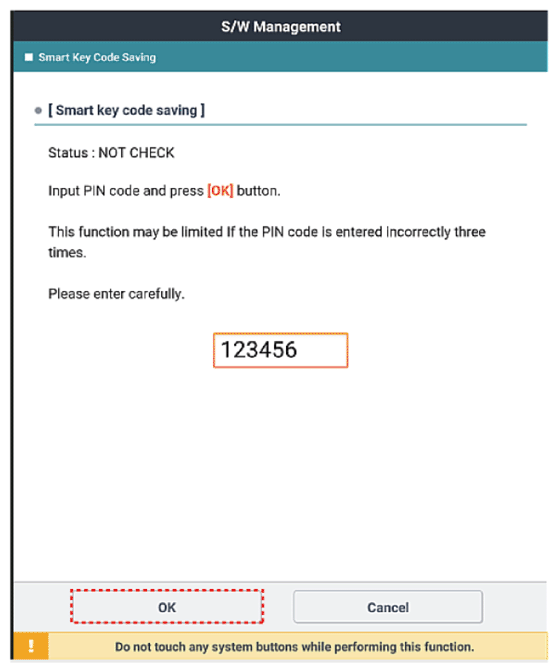

    G13438934Courtesy of KIA MOTORS AMERICA, INC.
    G13438935Courtesy of KIA MOTORS AMERICA, INC.
  6. Confirm the message "First key teaching completed".

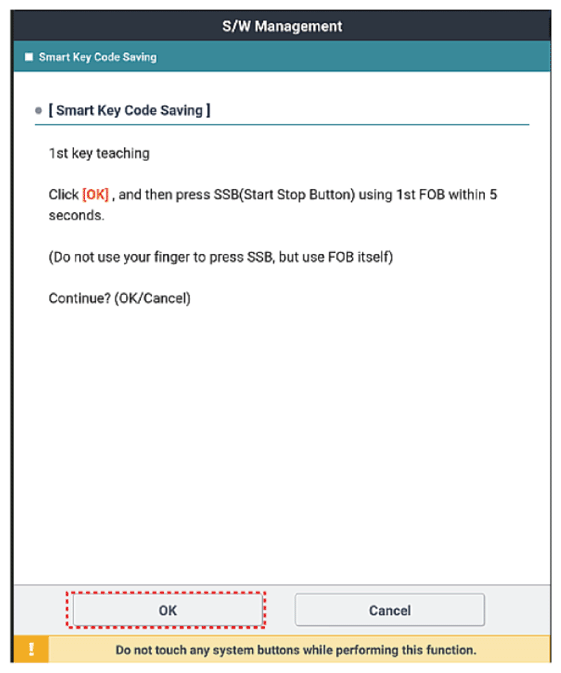

    G13438936Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 sec after pressing "OK".

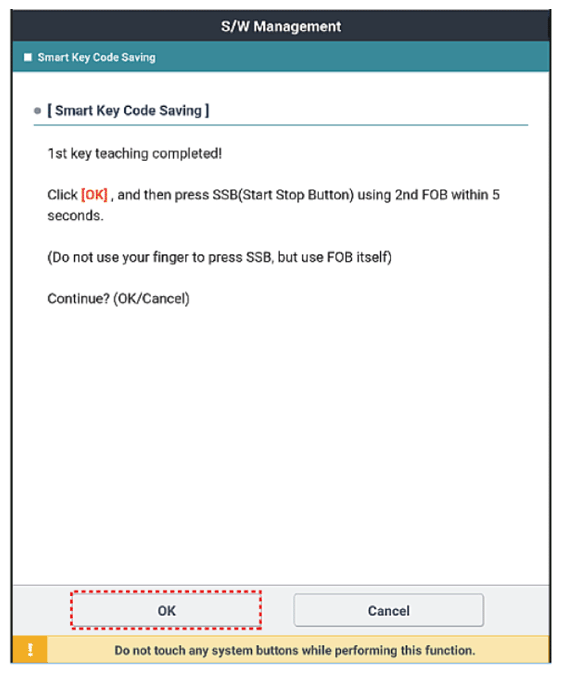

    G13438937Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".
    G13438938Courtesy of KIA MOTORS AMERICA, INC.

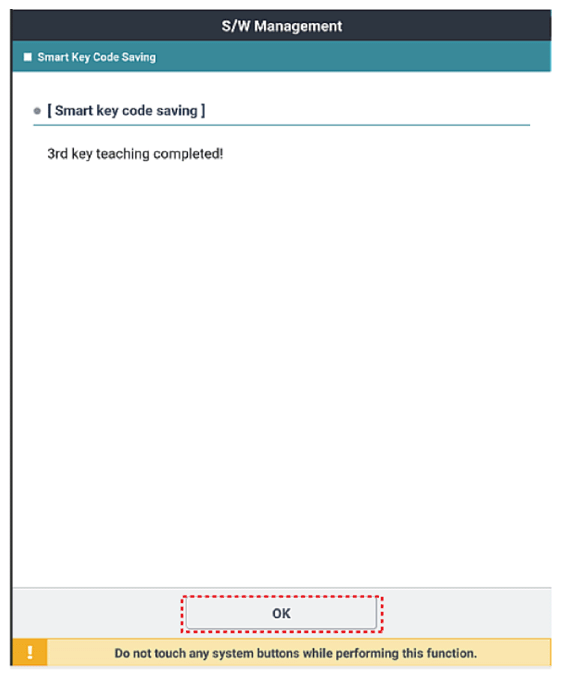

    G13438939Courtesy of KIA MOTORS AMERICA, INC.
  9. Then the screen will be shown as below when key teaching process is completed.
G13438940Courtesy of KIA MOTORS AMERICA, INC.
