[Power Window Main Switch]

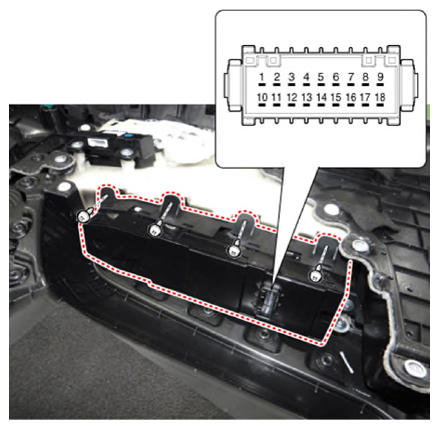

1. Remove the front left door trim.

   (Refer to Body - "FRONT DOOR TRIM ")

2. Check for continuity between the terminals in each switch position according to the table.

Courtesy of KIA MOTORS AMERICA, INC.

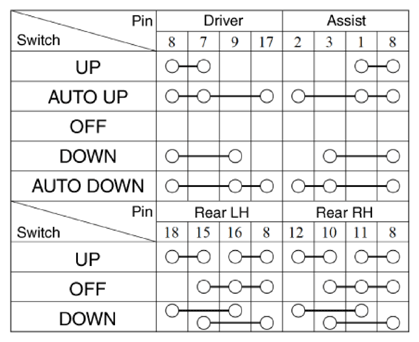

Front safety

Courtesy of KIA MOTORS AMERICA, INC.

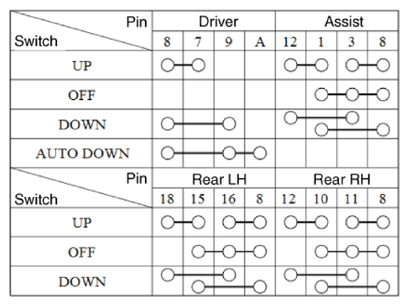

Driver safety

Courtesy of KIA MOTORS AMERICA, INC.

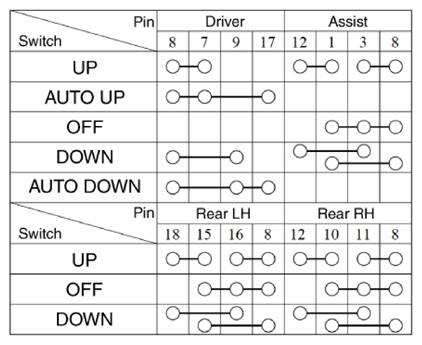

Auto down

Courtesy of KIA MOTORS AMERICA, INC.
