Repair Procedures: Disassembly

  1. Disconnect the negative battery cable.
  2. Remove the steering wheel assembly.

    (Refer to "REMOVAL ")

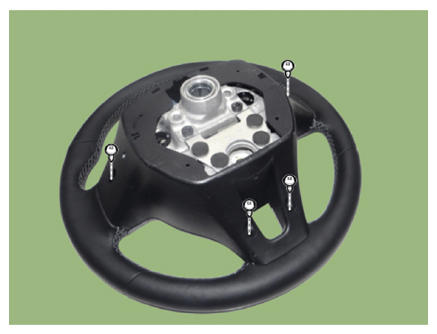

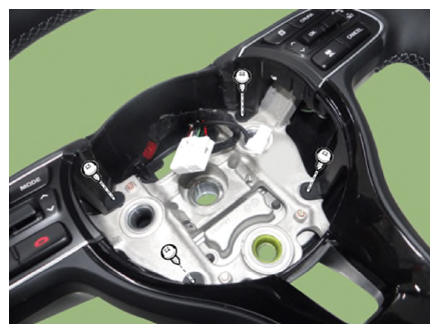

  3. Loosen the screw and then remove the steering back cover.
    G13437490Courtesy of KIA MOTORS AMERICA, INC.
    G13437491Courtesy of KIA MOTORS AMERICA, INC.

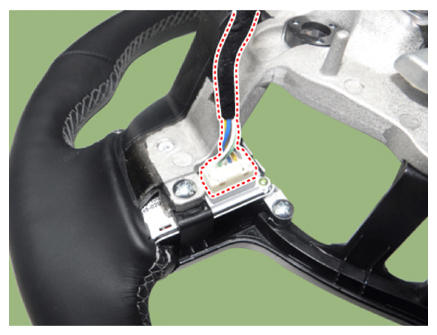

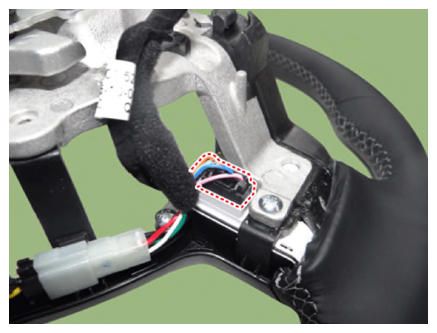

  4. Disconnect the remote control switch connector.
    G13437492Courtesy of KIA MOTORS AMERICA, INC.
    G13437493Courtesy of KIA MOTORS AMERICA, INC.

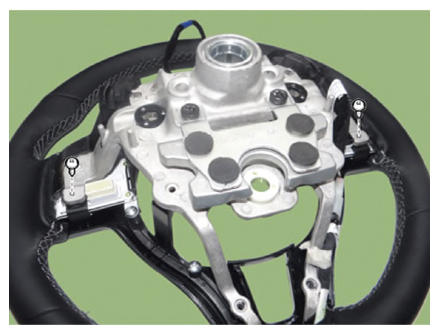

  5. Loosen the screw and then remove the remote control switch.
    G13437494Courtesy of KIA MOTORS AMERICA, INC.

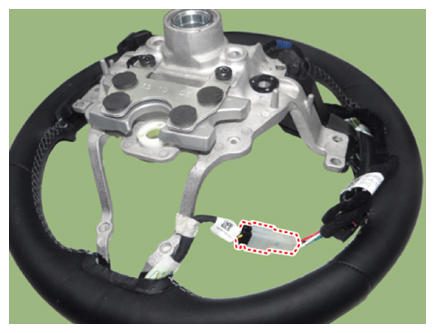

  6. Disconnect the heated pad connector.
    G13437495Courtesy of KIA MOTORS AMERICA, INC.

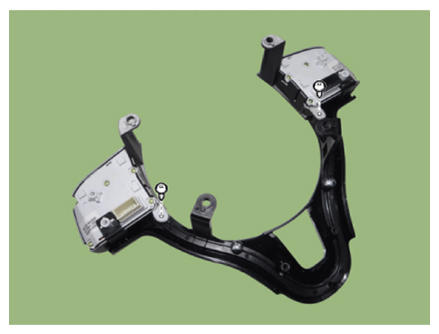

  7. Loosen the screw and then remove the remote control switch from the bezel.
    G13437496Courtesy of KIA MOTORS AMERICA, INC.

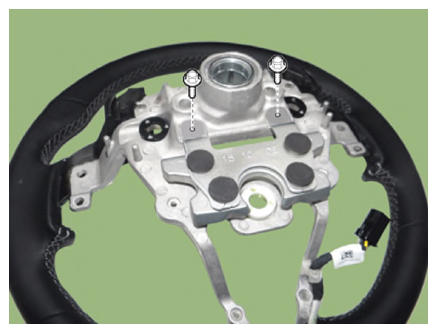

  8. Loosen the bolts and then remove the damper.
    G13437497Courtesy of KIA MOTORS AMERICA, INC.
  9. Install in the reverse order of removal.
