Smart Key Code Saving

  1. Connect the VCI II in driver side crash pad lower panel, turn the power on KDS.
  2. Select the vehicle model and then do "Smart key code saving".

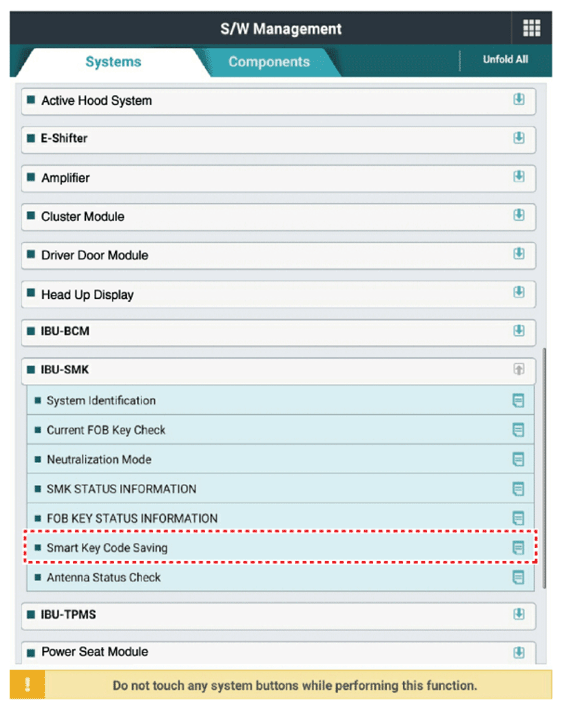

    G13351370Courtesy of KIA MOTORS AMERICA, INC.

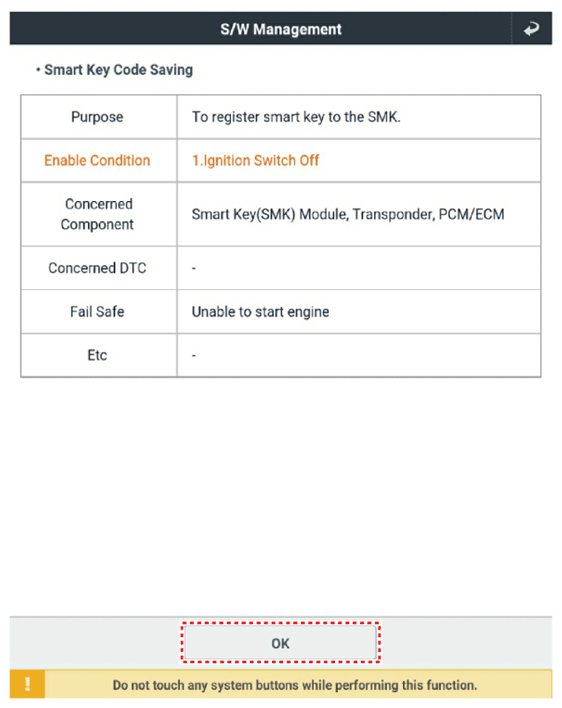

    G13351371Courtesy of KIA MOTORS AMERICA, INC.
  3. After selecting "Smart Key Code Saving" menu, push "OK" button, then the screen will be shown as below.

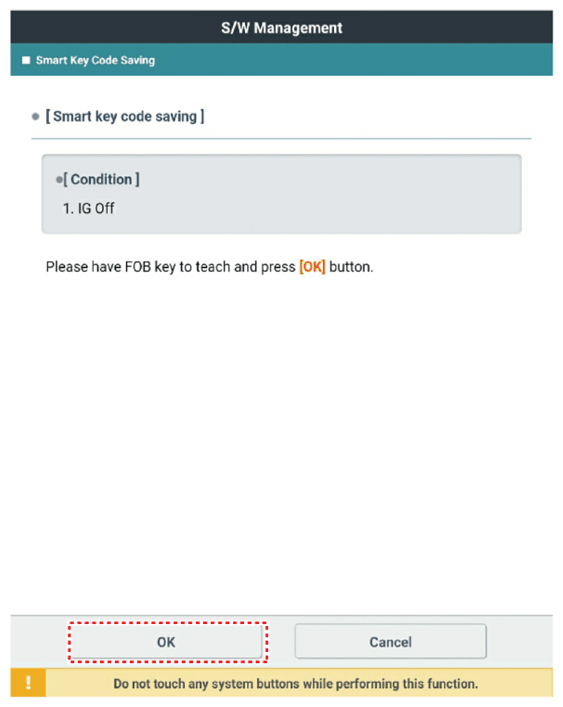

    G13351372Courtesy of KIA MOTORS AMERICA, INC.
  4. After teaching new smart key, push "OK" button.
  5. Input the "Pin code" for first key teaching.

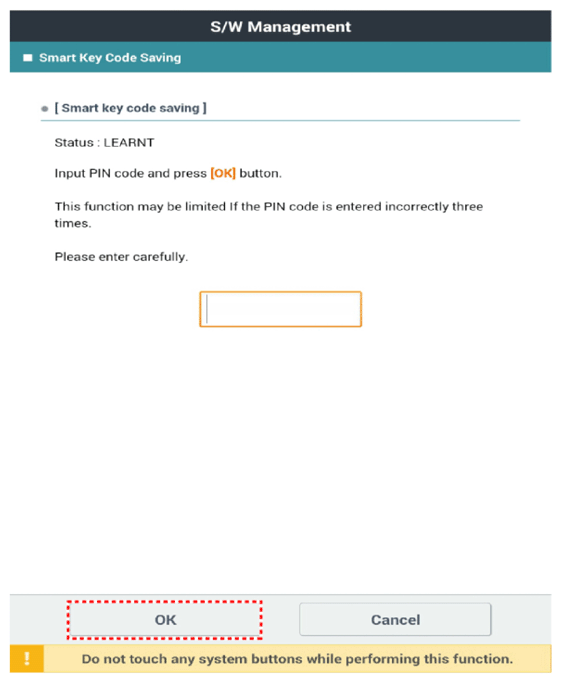

    G13351373Courtesy of KIA MOTORS AMERICA, INC.

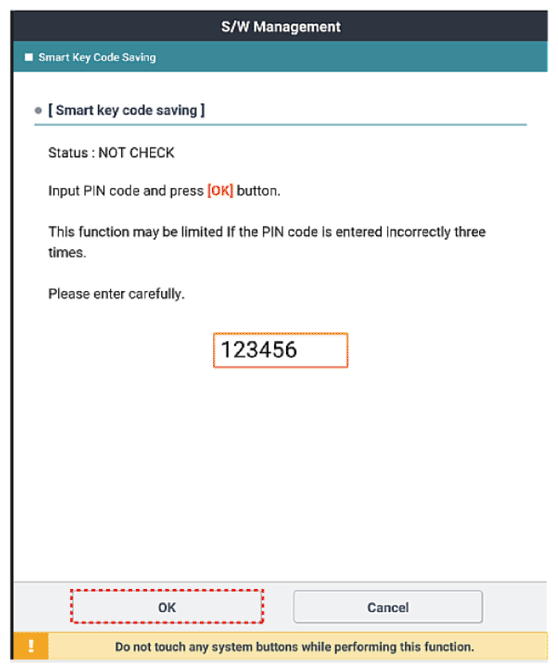

    G13351374Courtesy of KIA MOTORS AMERICA, INC.
    G13351375Courtesy of KIA MOTORS AMERICA, INC.
  6. Confirm the message "First key teaching completed".

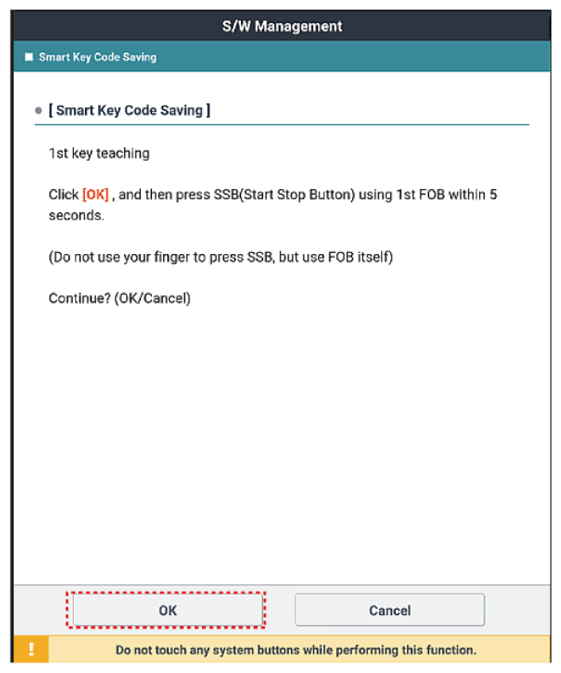

    G13351376Courtesy of KIA MOTORS AMERICA, INC.
  7. Press the SSB with smart key within 5 sec after pressing "OK".

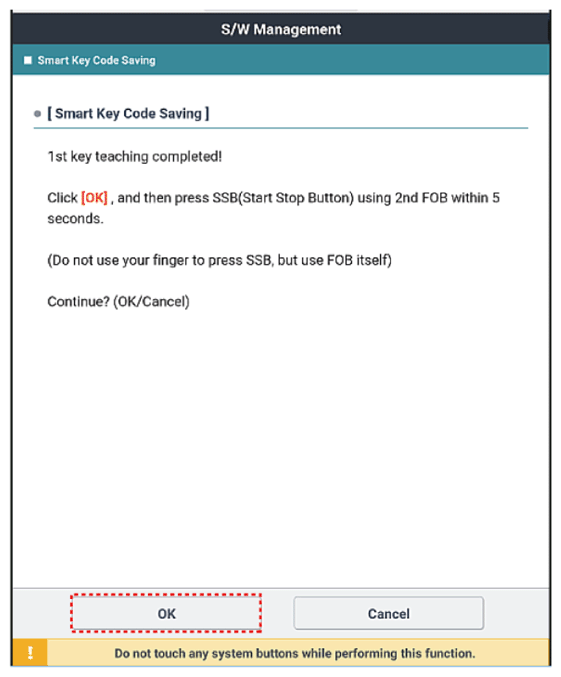

    G13351377Courtesy of KIA MOTORS AMERICA, INC.
  8. Confirm the message "Second key teaching completed".
    G13351378Courtesy of KIA MOTORS AMERICA, INC.

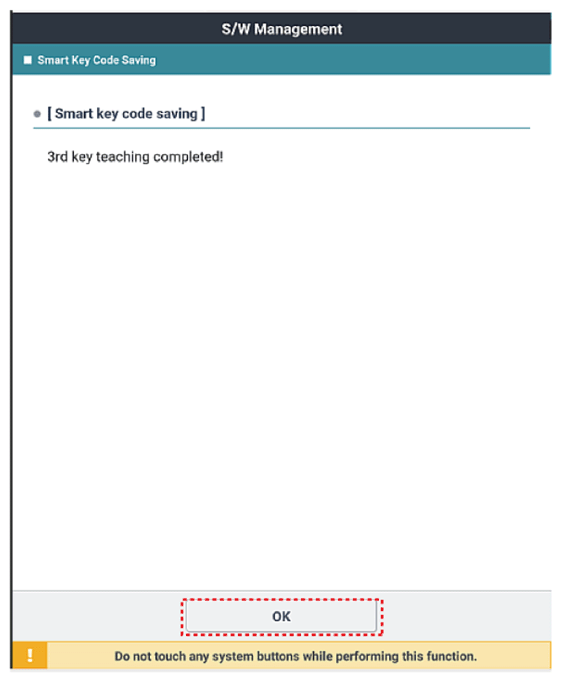

    G13351379Courtesy of KIA MOTORS AMERICA, INC.
  9. Then the screen will be shown as below when key teaching process is completed.
    G13351380Courtesy of KIA MOTORS AMERICA, INC.
