Front Power Window Motor

  1. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

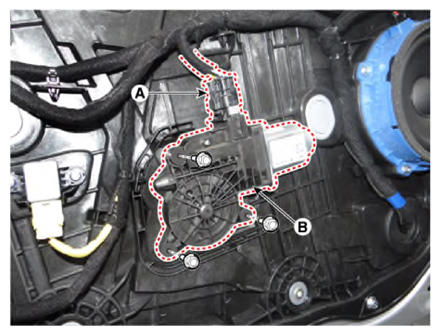

  2. After disconnecting the motor connector (A), remove the power window motor (B) by loosening the bolts.
    G13351240Courtesy of KIA MOTORS AMERICA, INC.
