[Power Window Main Switch]

  1. Remove the front left door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  2. Check for continuity between the terminals in each switch position according to the table.

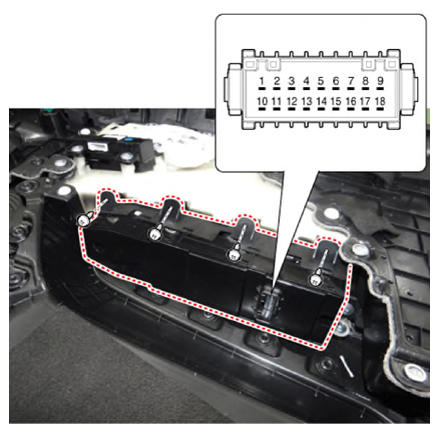

    G13351258Courtesy of KIA MOTORS AMERICA, INC.

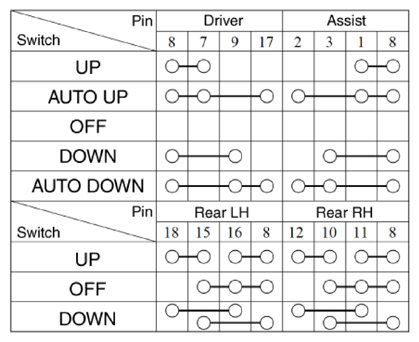

    Front Safety

    G13351259Courtesy of KIA MOTORS AMERICA, INC.

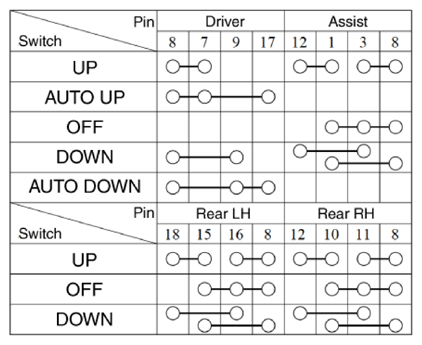

    Driver Safety

    G13351260Courtesy of KIA MOTORS AMERICA, INC.

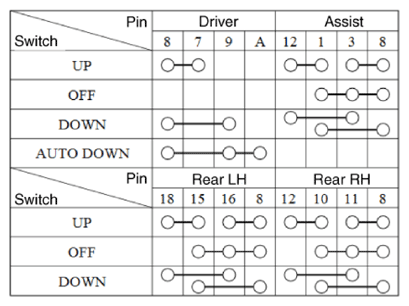

    Auto Down

    G13351261Courtesy of KIA MOTORS AMERICA, INC.
