Rear Power Window Switch

  1. Remove the rear left door trim.

    (Refer to Body - "REAR DOOR TRIM ")

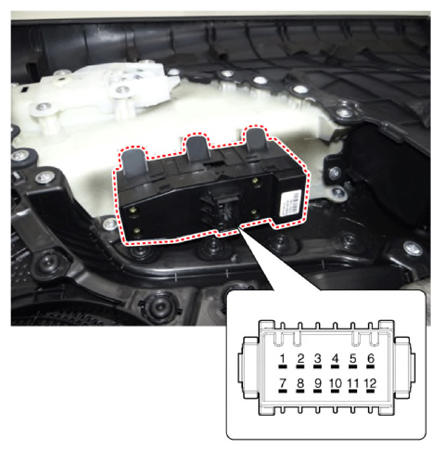

  2. Check for continuity between the terminals in each switch position according to the table.
    G13351265Courtesy of KIA MOTORS AMERICA, INC.

    Non-Seat Warmer

    G13351266Courtesy of KIA MOTORS AMERICA, INC.

    Seat Warmer

    G13351267Courtesy of KIA MOTORS AMERICA, INC.
