Rear Power Window Switch

  1. Remove the rear left door trim.

    (Refer to Body - "REAR DOOR TRIM ")

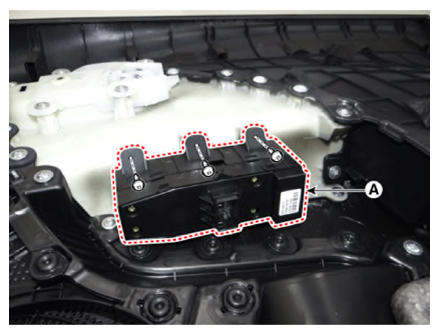

  2. Remove the rear power window switch (A) by loosening the screws.
    G13351270Courtesy of KIA MOTORS AMERICA, INC.
