Repair Procedures: Removal

  1. Remove the tire.

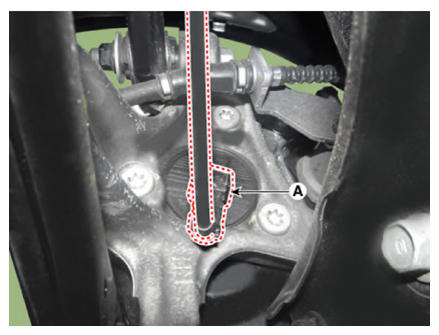

  2. Disconnect the wheel speed sensor connector (A).
    G13349966Courtesy of KIA MOTORS AMERICA, INC.

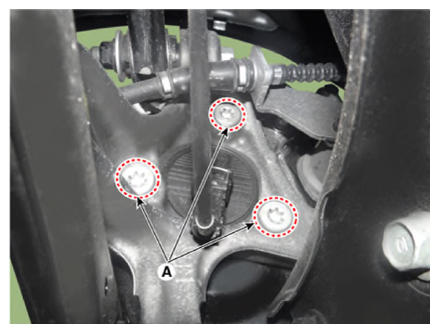

  3. Loosen the bearing bolts (A) and then remove the hub bearing assembly.

    Tightening torque:

    88.2 - 107.8 N.m (9.0 - 11.0 kgf.m, 65.0 - 79.5 lb.ft)

G13349967Courtesy of KIA MOTORS AMERICA, INC.
