Repair Procedures: Removal

  1. Disconnect the battery negative (-) cable.

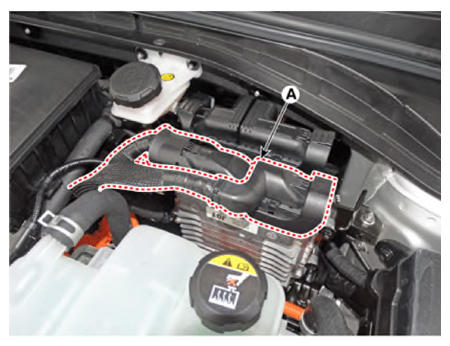

  2. Disconnect the TCM connector (A).
    G13349116Courtesy of KIA MOTORS AMERICA, INC.

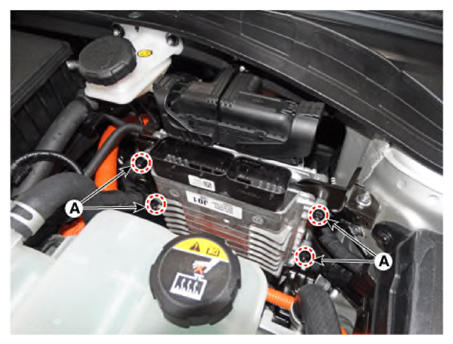

  3. Remove the TCM after loosening the nuts (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13349117Courtesy of KIA MOTORS AMERICA, INC.
