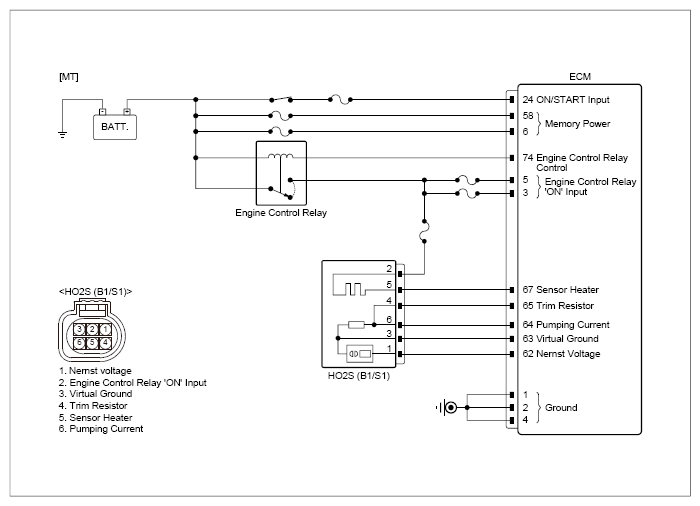

Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
HO2S (B1/S1) connector | 1 (nernst cell) | Chassis ground | - | Approx. 0.3V (duty signal) |
| HO2S (B1/S1) connector | 3 (virtual ground) | Chassis ground | - | Approx. 0V | |
| HO2S (B1/S1) connector | 6 (current pump) | Chassis ground | - | Approx. 0V | |
| HO2S (B1/S1) connector | 4 (current adjust) | Chassis ground | - | Approx. 0V | |
|

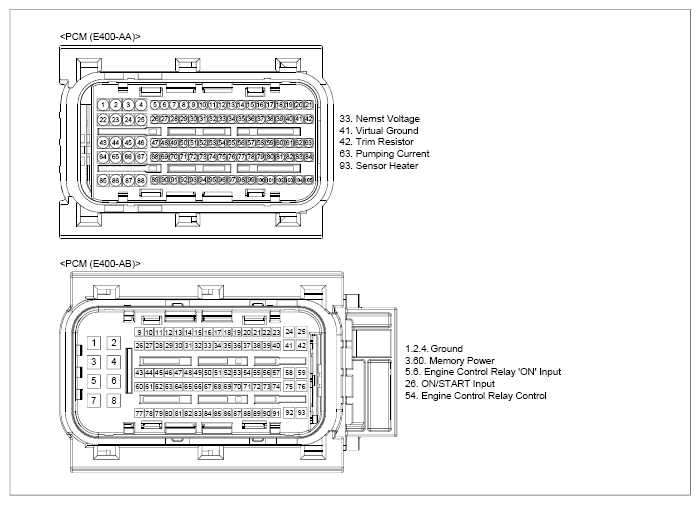

HO2S (B1/S1) connector | 1 (nernst cell) | PCM connector | 33 (nernst cell) | Approx. below 1Ω |

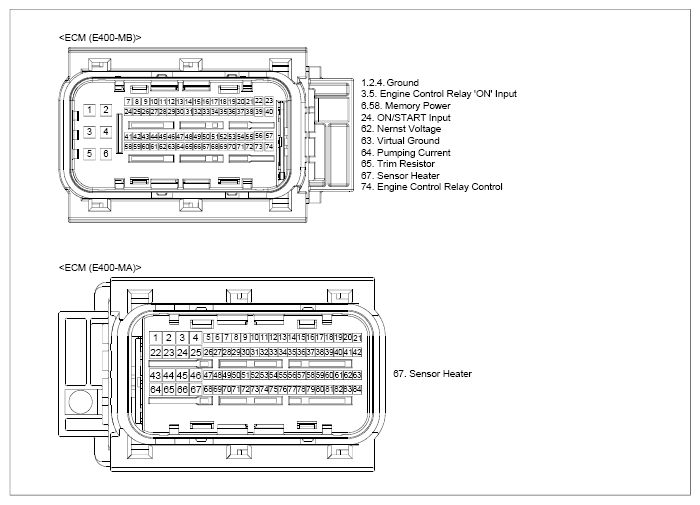

| HO2S (B1/S1) connector | 1 (nernst cell) | ECM connector | 62 (nernst cell) | Approx. below 1Ω | |
| HO2S (B1/S1) connector | 3 (virtual ground) | PCM connector | 41 (virtual ground) | Approx. below 1Ω | |
| HO2S (B1/S1) connector | 3 (virtual ground) | ECM connector | 63 (virtual ground) | Approx. below 1Ω | |
| HO2S (B1/S1) connector | 6 (current pump) | PCM connector | 63 (pumping current) | Approx. below 1Ω | |
| HO2S (B1/S1) connector | 6 (current pump) | ECM connector | 64 (pumping current) | Approx. below 1Ω | |
| HO2S (B1/S1) connector | 4 (current adjust) | PCM connector | 42 (trim resistor) | Approx. below 1Ω | |
| HO2S (B1/S1) connector | 4 (current adjust) | ECM connector | 65 (trim resistor) | Approx. below 1Ω | |
| HO2S (B1/S1) connector | 1 (nernst cell) | Chassis ground | - | ∞ (infinity)Ω | |
| HO2S (B1/S1) connector | 6 (current pump) | Chassis ground | - | ∞ (infinity)Ω | |
| HO2S (B1/S1) connector | 4 (current adjust) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
