Circuit Inspection

G13708408Courtesy of KIA MOTORS AMERICA, INC.

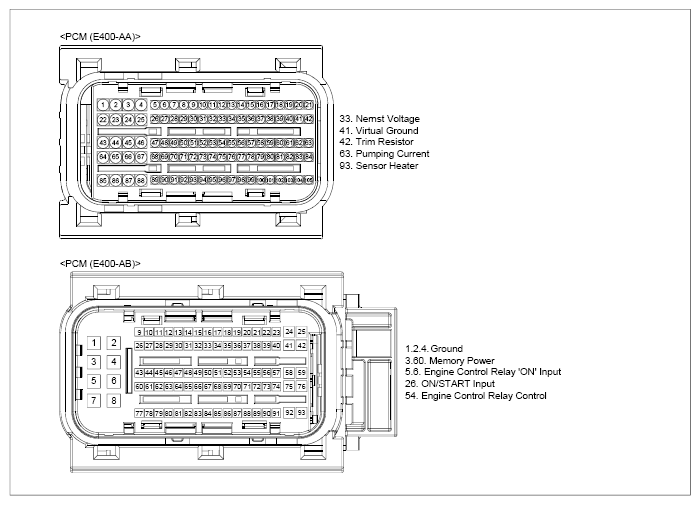

G13708409Courtesy of KIA MOTORS AMERICA, INC.

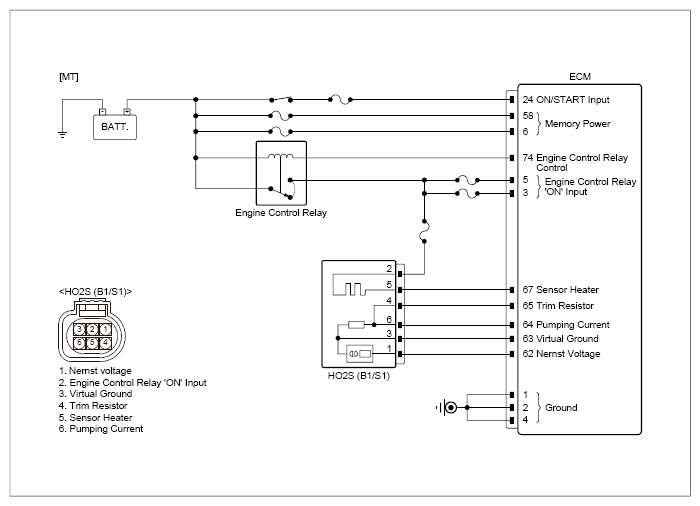

G13708410Courtesy of KIA MOTORS AMERICA, INC.

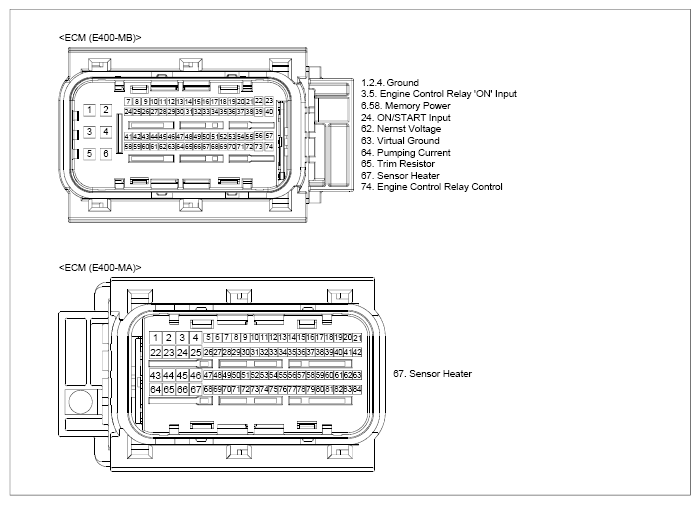

G13708411Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector (s) from the concerned component.
  3. Ignition "ON".
 HO2S (B1/S1) connector 2 (power) Chassis ground - B+
HO2S (B1/S1) connector 5 (heater) Chassis ground - Approx. 3.5V
  1. Ignition "OFF".
  2. Disconnect the electrical connector (s) from the concerned component.
 HO2S (B1/S1) connector 5 (heater) Chassis ground - ∞ (infinity)Ω

Good

No Good
