Repair Procedures: Installation

  1. Remove the ignition from the vehicle.
  2. Disconnect the battery negative terminal and wait for at least thirty seconds before beginning work.

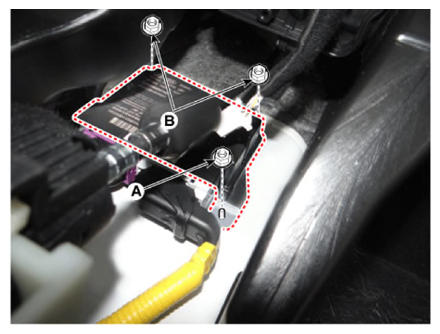

  3. Install the SRSCM with the SRSCM mounting bolt (A) and nuts (B).

    Tightening torque:

    8.0 - 14.0 N.m (0.8 - 1.4 kgf.m, 5.9 - 10.3 lb.ft)

    G13705300Courtesy of KIA MOTORS AMERICA, INC.
  4. Connect the SRSCM harness connector.
  5. Install the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  6. Reconnect the battery negative terminal.
  7. After installing the SRSCM, confirm proper system operation:

    Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
