Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF".
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics BackUP & Input (TCU Replacement)" and go to "VERIFICATION OF REPAIR " procedure.
 Fig.1 to 10

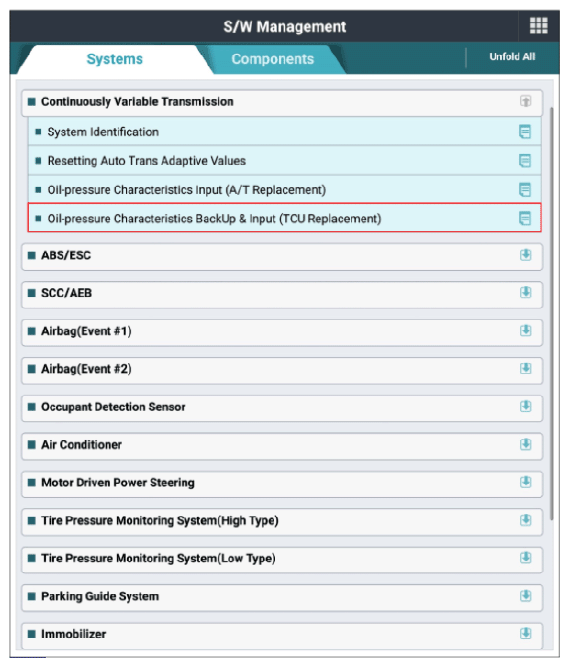

G13710704Courtesy of KIA MOTORS AMERICA, INC.

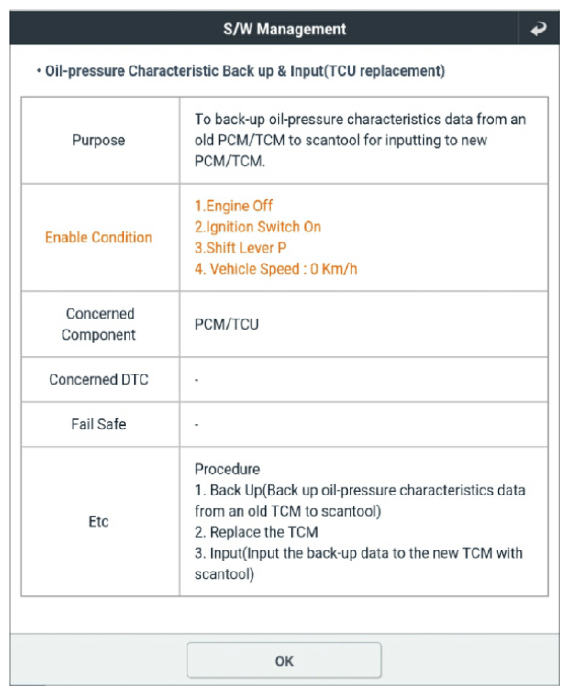

G13710705Courtesy of KIA MOTORS AMERICA, INC.

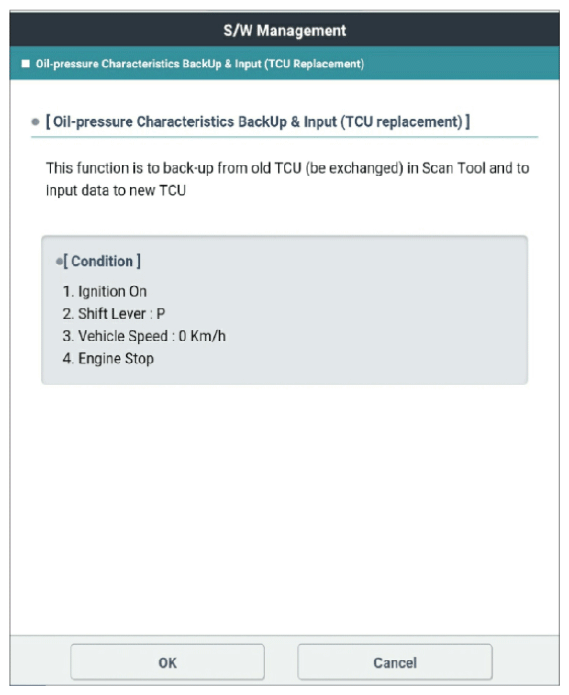

G13710706Courtesy of KIA MOTORS AMERICA, INC.

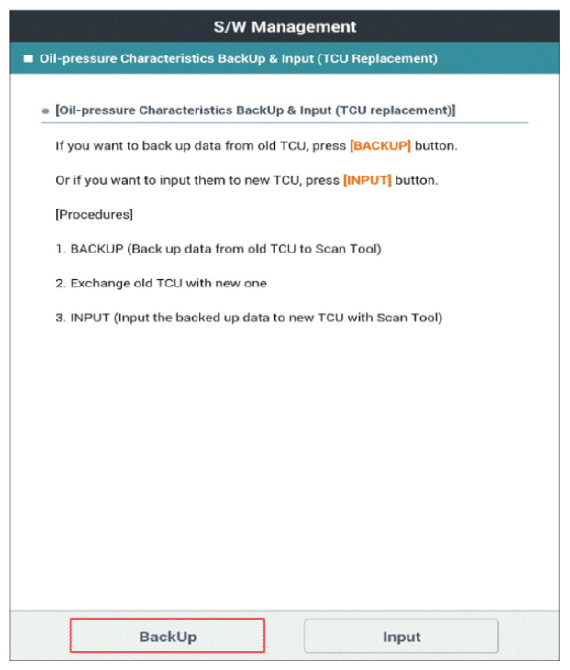

G13710707Courtesy of KIA MOTORS AMERICA, INC.

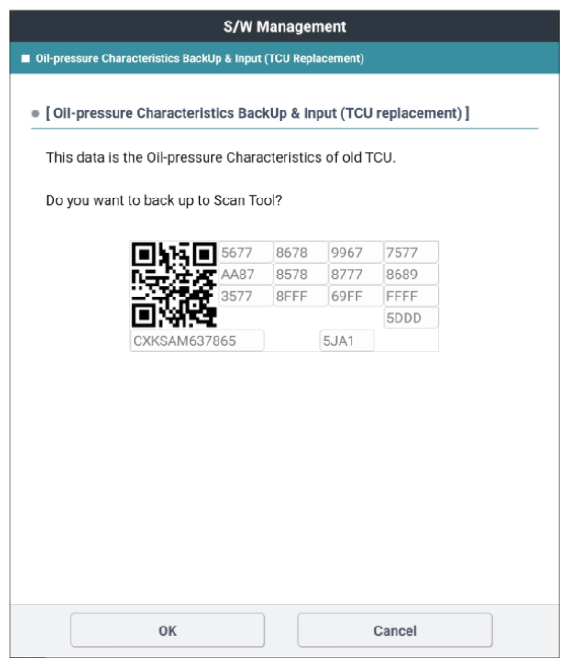

G13710708Courtesy of KIA MOTORS AMERICA, INC.

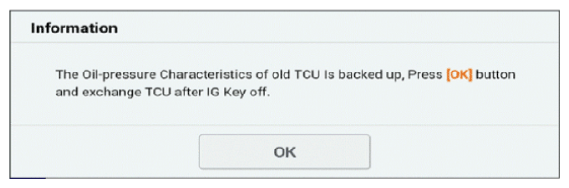

G13710709Courtesy of KIA MOTORS AMERICA, INC.

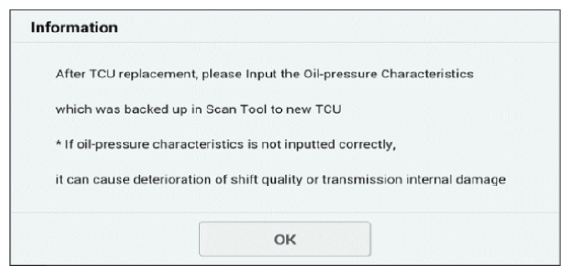

G13710710Courtesy of KIA MOTORS AMERICA, INC.

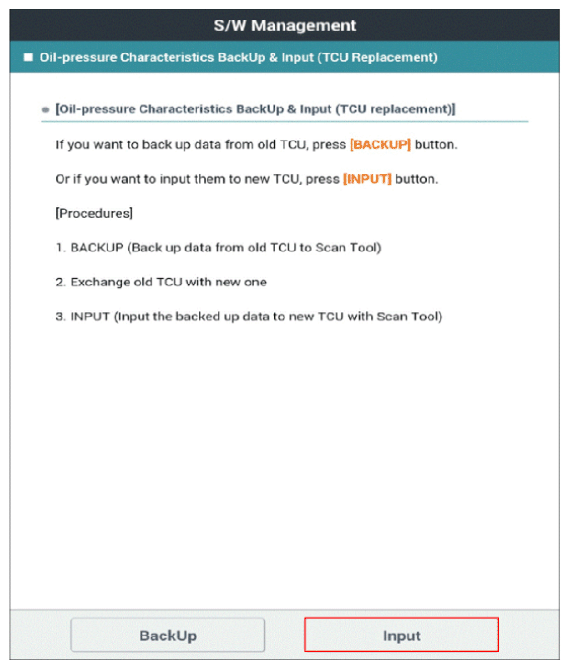

G13710711Courtesy of KIA MOTORS AMERICA, INC.

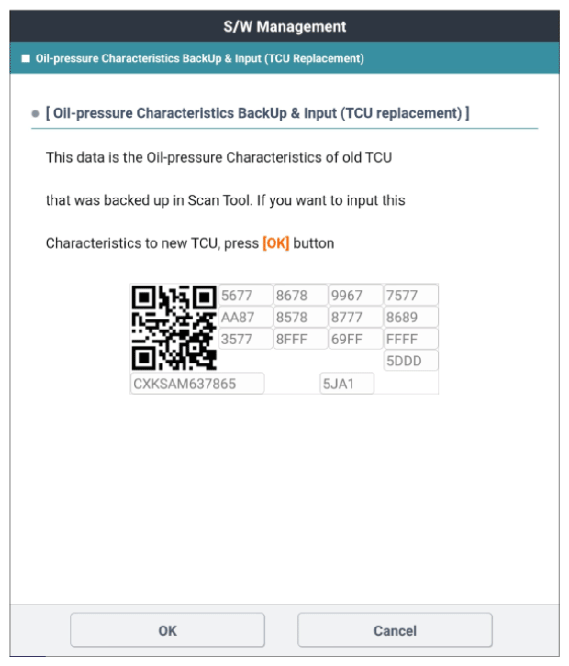

G13710712Courtesy of KIA MOTORS AMERICA, INC.

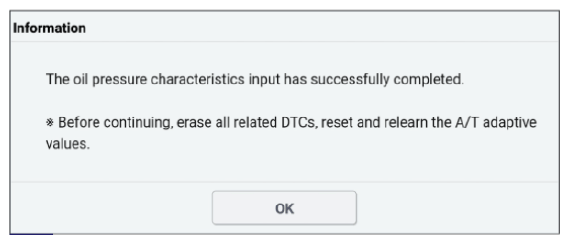

G13710713Courtesy of KIA MOTORS AMERICA, INC.
