FOB Status Check

1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.

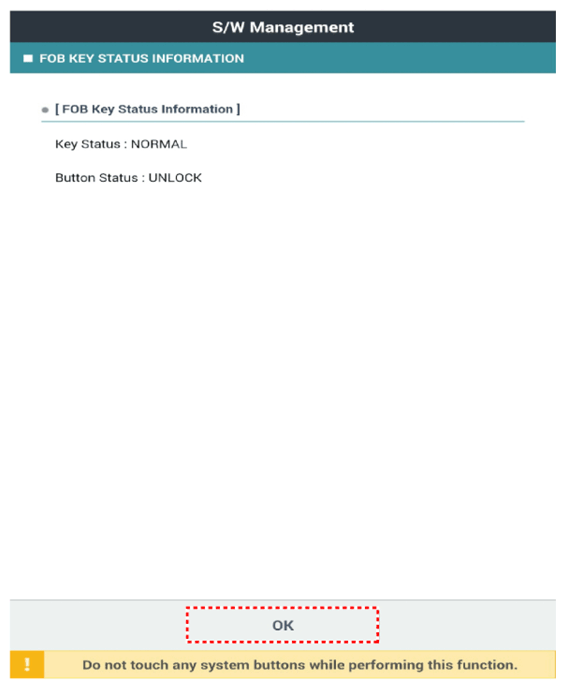

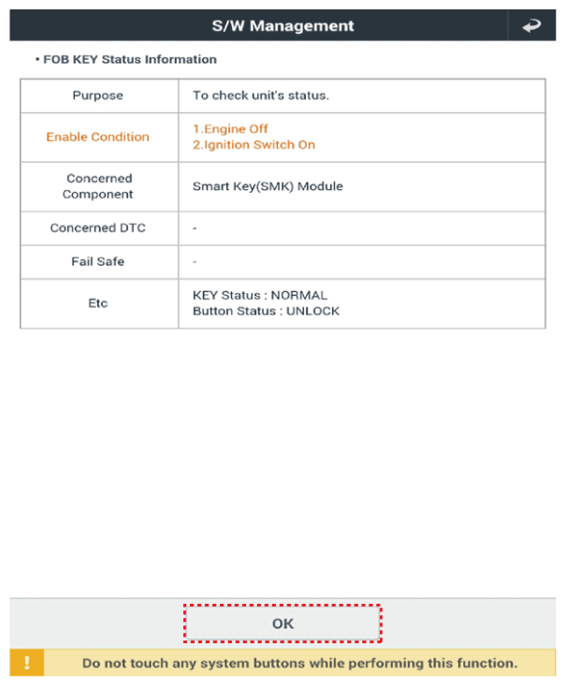

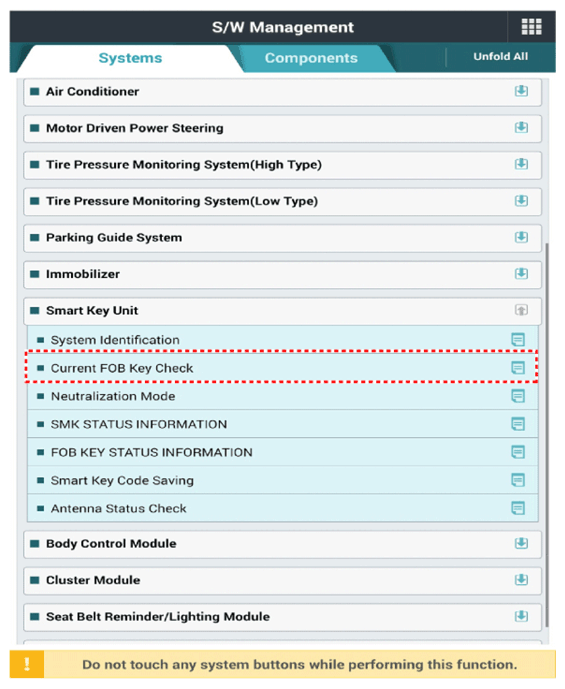

2. After IG ON, select the "FOB KEY STATUS INFO".

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Smart Key Status Check

1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.

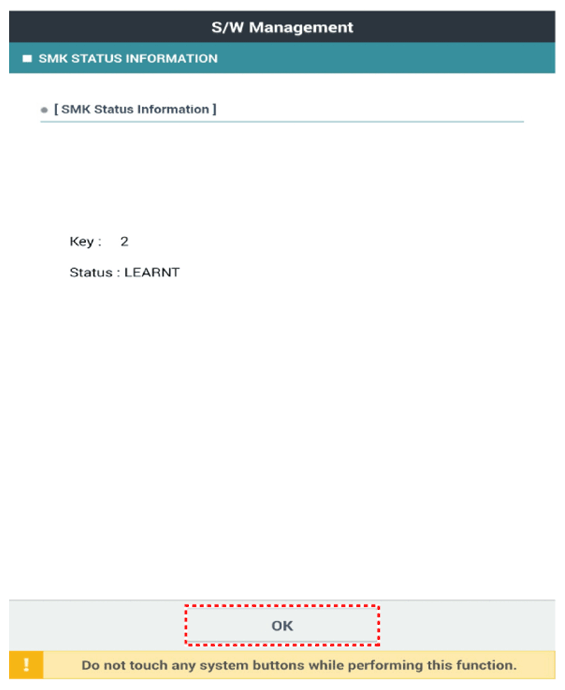

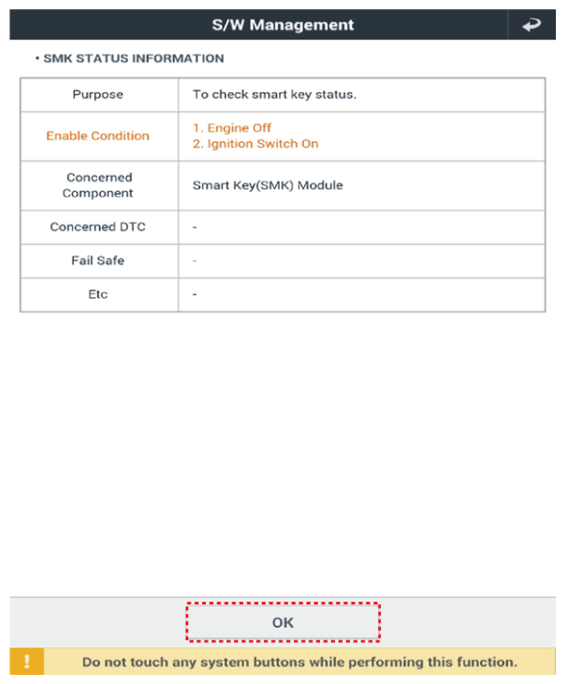

2. After IG ON, select the "SMK STATUS INFO".

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
