Component Inspection
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

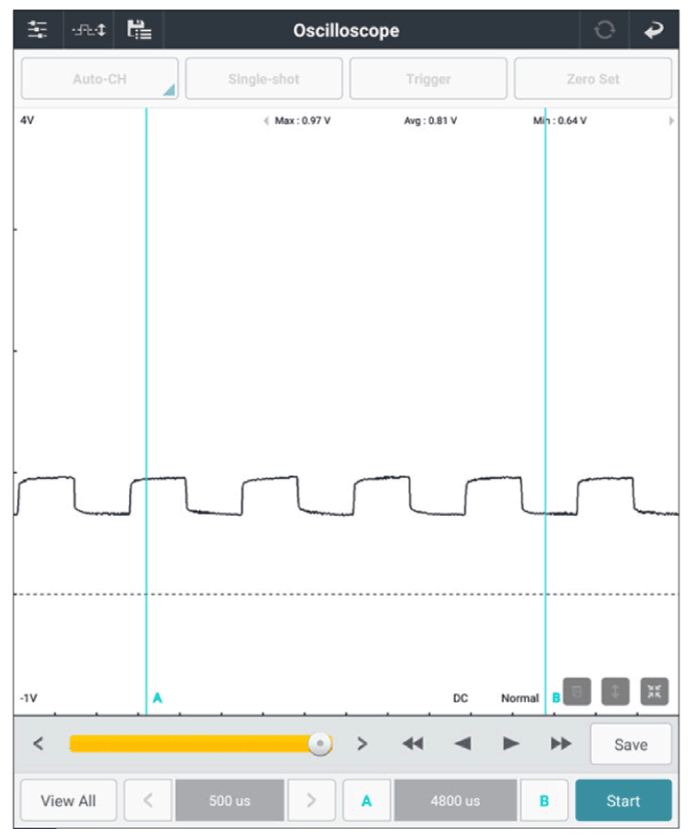

HO2S#4 (B2/S2) connector | 1 (sensor signal) | HO2S#4 (B2/S2) connector | 2 (sensor ground) | Figure 1 below. |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the HO2S (B2/S2) and go to "VERIFICATION OF REPAIR " procedure.
