Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 5

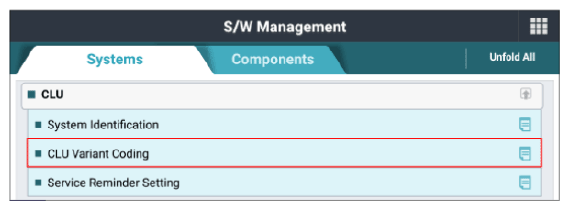

G13485043Courtesy of KIA MOTORS AMERICA, INC.

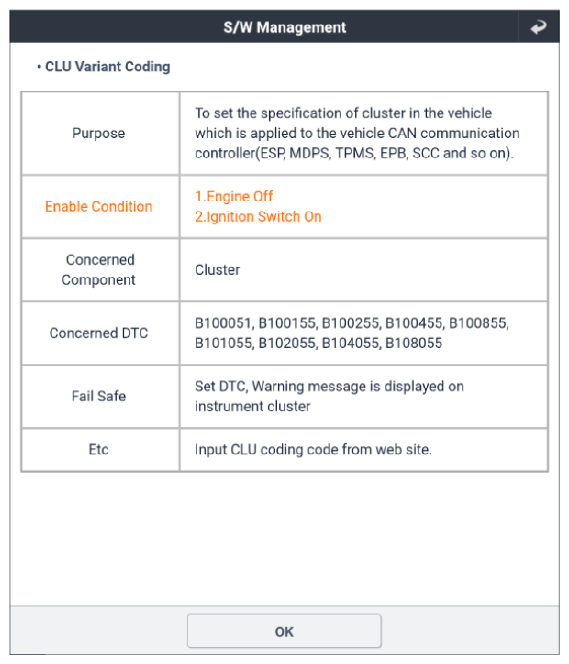

G13485044Courtesy of KIA MOTORS AMERICA, INC.

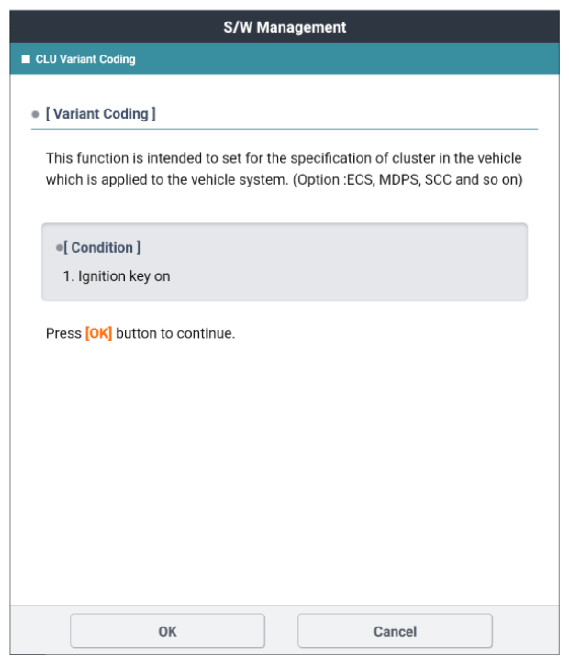

G13485045Courtesy of KIA MOTORS AMERICA, INC.

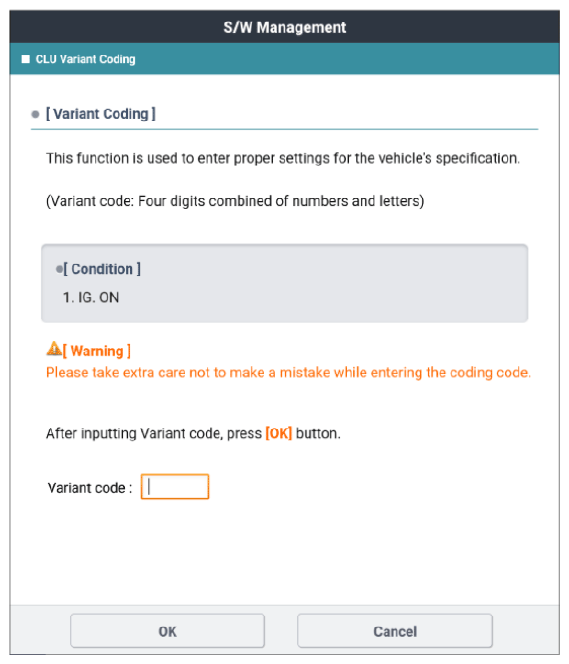

G13485046Courtesy of KIA MOTORS AMERICA, INC.

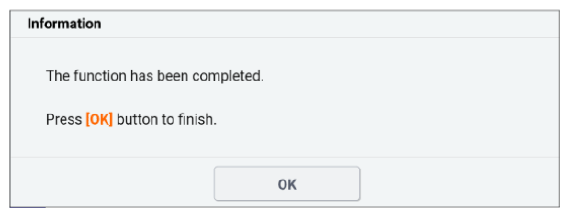

G13485047Courtesy of KIA MOTORS AMERICA, INC.
