Service Point Target Auto Calibration (SPTAC) Procedure

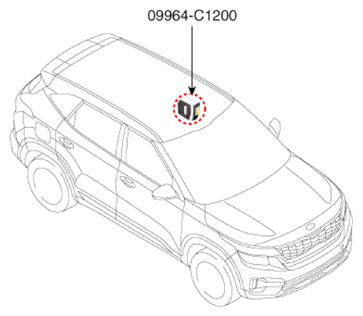

  1. Install the SST (09964-C1200) on the roof center above the vehicle's front windshield.
    G13482366Courtesy of KIA MOTORS AMERICA, INC.

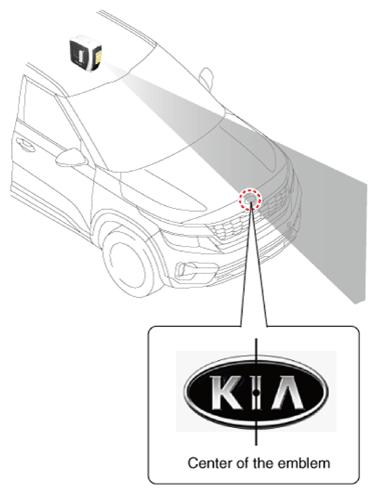

  2. Have the laser illuminate starting from the roof center and to passing through the center of the emblem.
    G13482367Courtesy of KIA MOTORS AMERICA, INC.

    Information

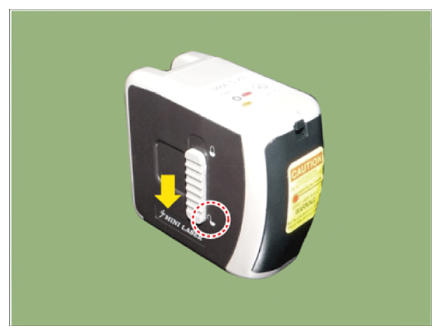

    The level laser must be set to 'ON' and the holding (locking) function is not used.

    G13482368Courtesy of KIA MOTORS AMERICA, INC.

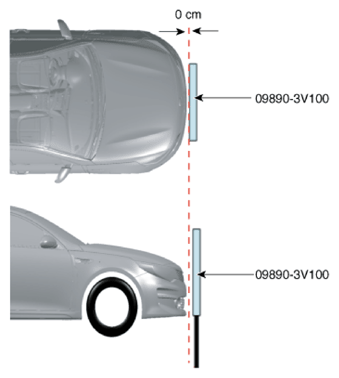

  3. Place the calibration target (09890-3V100) so that it adheres by 0 cm to the bumper front. [max. tolerance: 5 cm (1.97 in.)]
    G13482369Courtesy of KIA MOTORS AMERICA, INC.

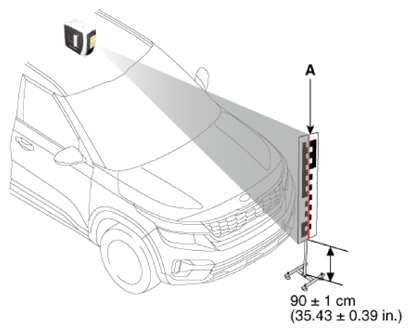

  4. Set the calibration target height to 90 ± 1 cm (35.43 ± 0.39 in.) from the ground and align the center of calibration target with center line (A) of laser beam.
    G13482370Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • The vehicle horizontal plane shall be completely parallel to the target horizontal plane (0 degree).
    • Align the calibration target (09890-3V100) referring to the tolerance angle below.
      G13482371Courtesy of KIA MOTORS AMERICA, INC.
      G13482372Courtesy of KIA MOTORS AMERICA, INC.
    • Mounting area must not have cross hatch patterns or textual markings near the target.
    • Target should be well lit for optimal performance using non-fluctuating illumination. There shall be no continuous shadows cast on the target.
    • The light should be directed toward the target front and the target front should be brighter than the target rear and target.

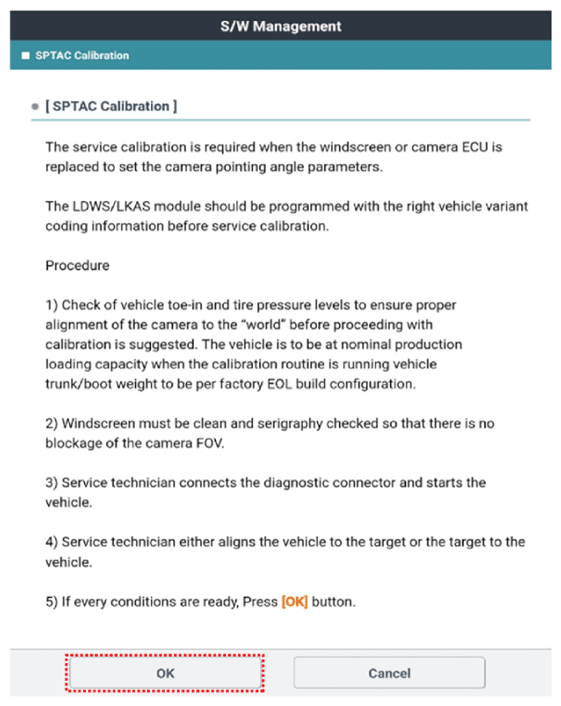

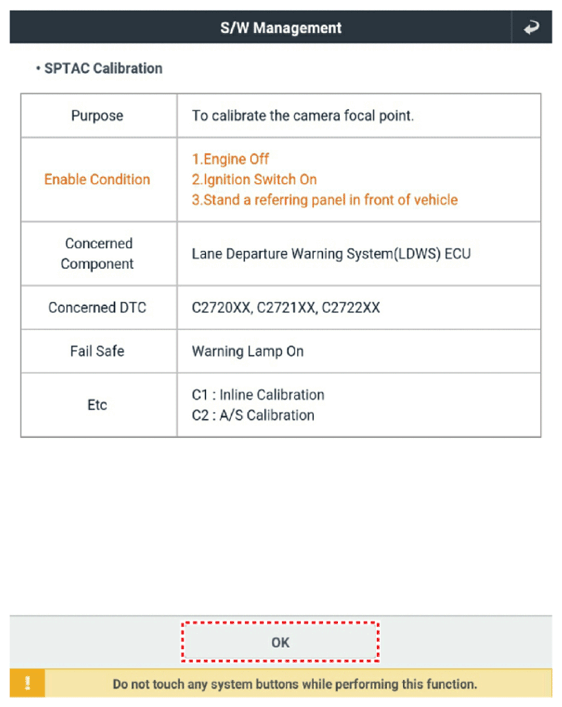

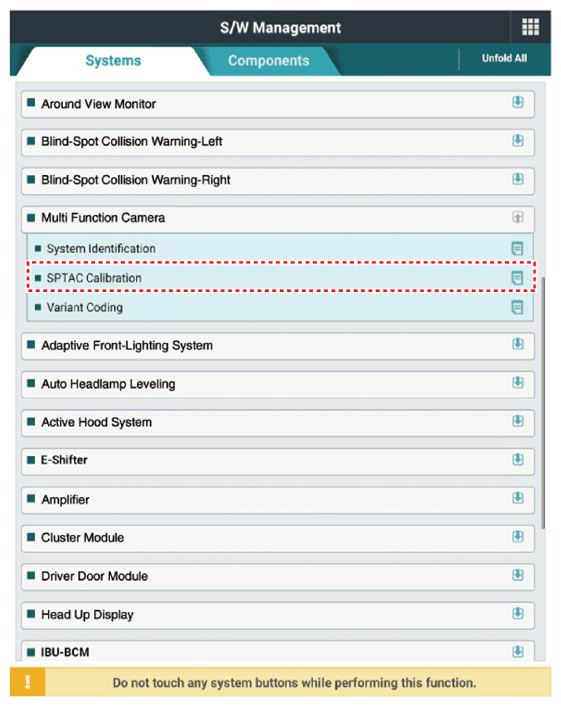

  5. Perform the "SPTAC Calibration" using the KDS.
    G13482373Courtesy of KIA MOTORS AMERICA, INC.
    G13482374Courtesy of KIA MOTORS AMERICA, INC.
    G13482375Courtesy of KIA MOTORS AMERICA, INC.

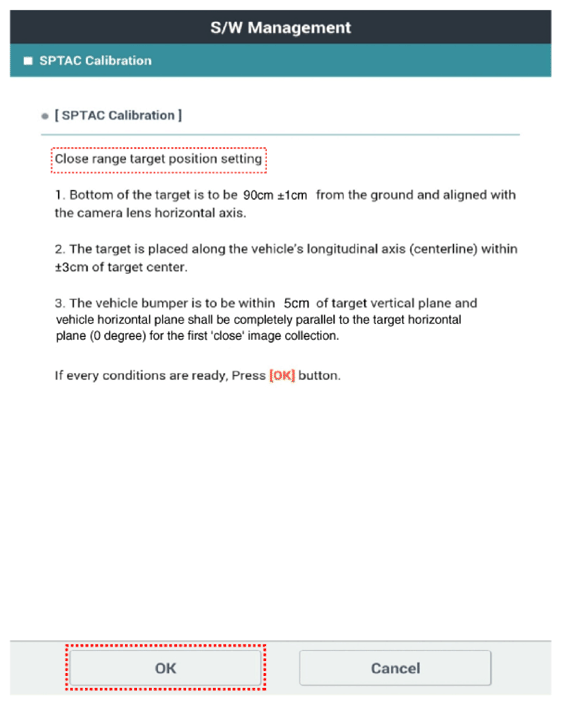

  6. Perform the short-distance calibration by selecting the "OK" message on the KDS after checking the calibration target location.
    G13482376Courtesy of KIA MOTORS AMERICA, INC.
    G13482377Courtesy of KIA MOTORS AMERICA, INC.

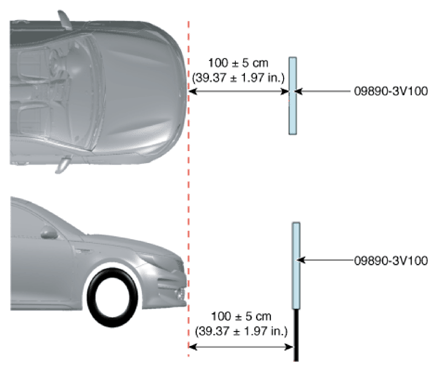

  7. Move the calibration target (09890-3V100) at 100 cm (39.37 in.) from the bumper. [max. tolerance: ± 5 cm (± 1.97 in.)]
    G13482378Courtesy of KIA MOTORS AMERICA, INC.

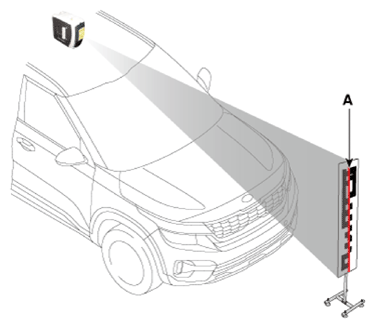

  8. Align the center of calibration target with center line (A) of laser beam.
    G13482379Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • The vehicle horizontal plane shall be completely parallel to the target horizontal plane (0 degree).

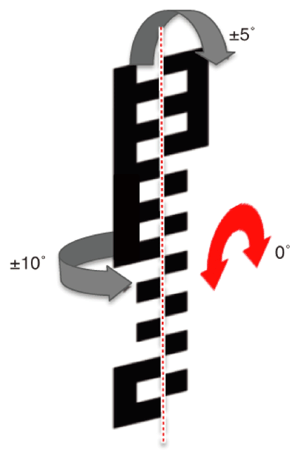

    • Align the calibration target (09890-3V100) referring to the below tolerance angle.
      G13482380Courtesy of KIA MOTORS AMERICA, INC.
      G13482381Courtesy of KIA MOTORS AMERICA, INC.
    • Mounting area must not have cross hatch patterns or textual markings near the target.
    • Target should be well lit for optimal performance using non-fluctuating illumination. There shall be no continuous shadows cast on the target.
    • The light should be directed toward the target front and the target front should be brighter than the target rear and target.

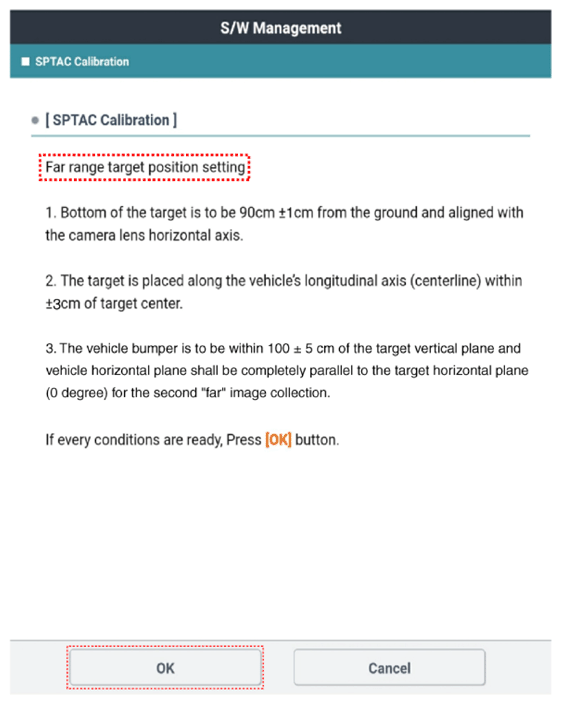

  9. Perform the long-distance calibration by selecting the "OK" message on the KDS after checking the calibration target location.
    G13482382Courtesy of KIA MOTORS AMERICA, INC.
    G13482383Courtesy of KIA MOTORS AMERICA, INC.

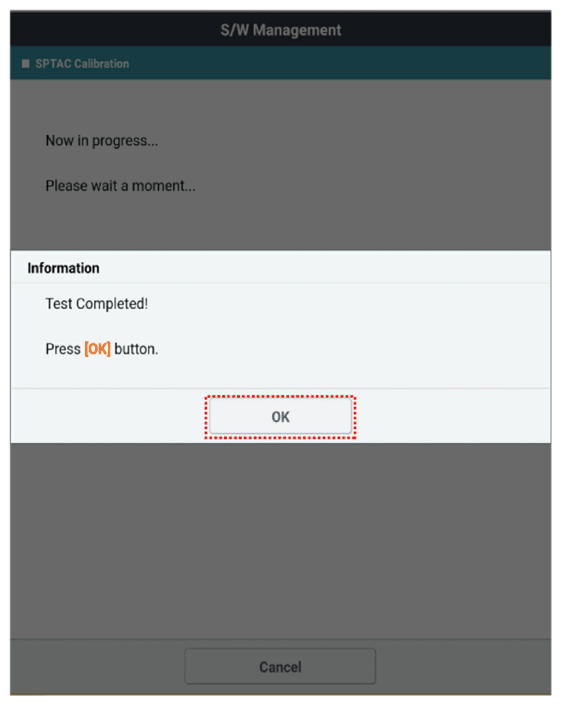

    G13482384Courtesy of KIA MOTORS AMERICA, INC.
  10. Clear the diagnostic trouble codes (DTC) using the KDS.
  11. Check the DTC and warning lamp.
