Smart Key Diagnosis

  1. Connect VCI to the vehicle. (IG OFF)
  2. SMKK sensor data check in KDS
  3. Operate the key buttons. (Lock, Unlock, Remote start)
  4. Check if the key works

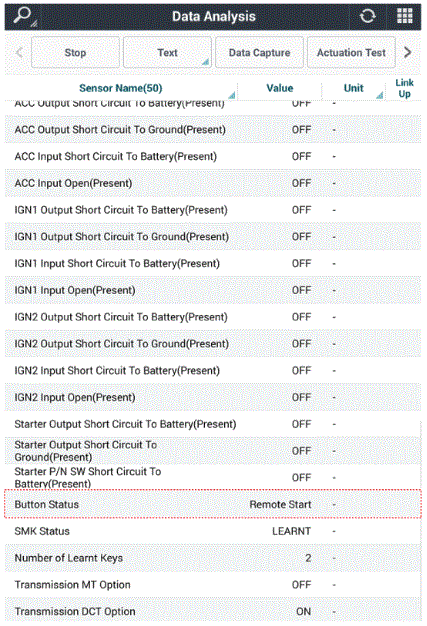

G00614839

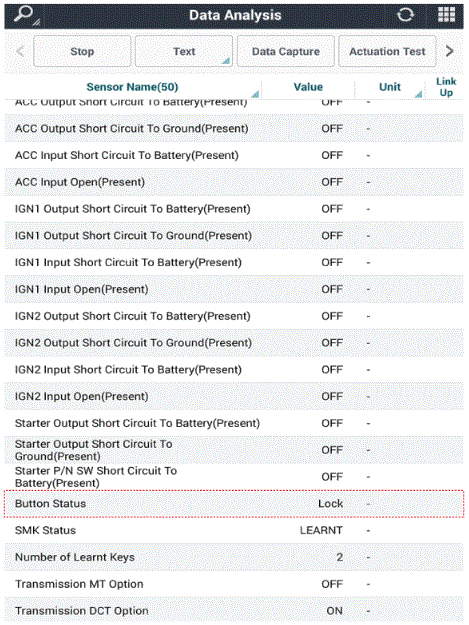

G00614840

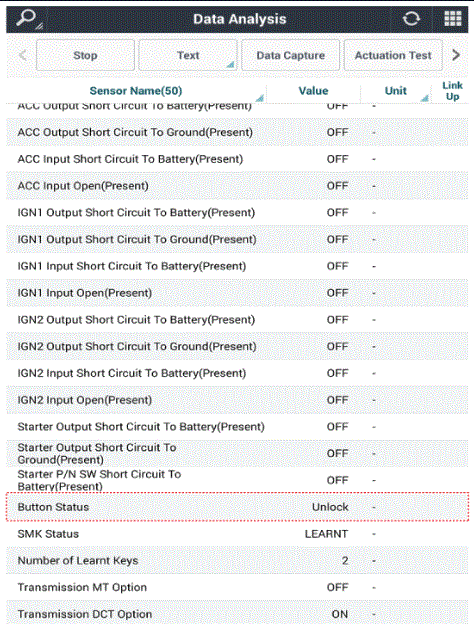

G00614841
