Repair Procedures: Removal

Turn ignition OFF and disconnect the negative (-) battery cable.
Remove the Intercooler inlet hose and Intercooler inlet pipe.[G 1.6 T-GDI GAMMA only]
G 1.6 T-GDI GAMMA (Refer to Engine Mechanical System - "INTAKE AND EXHAUST SYSTEM ")

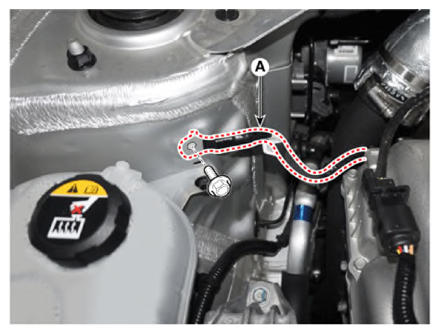

Disconnect the battery negative wirings (A).
Tightening torque:

10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

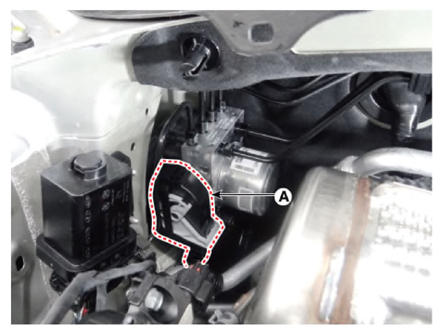

Pull up the ESC connector lock (A) and then disconnect the connector.

Courtesy of KIA MOTORS AMERICA, INC.

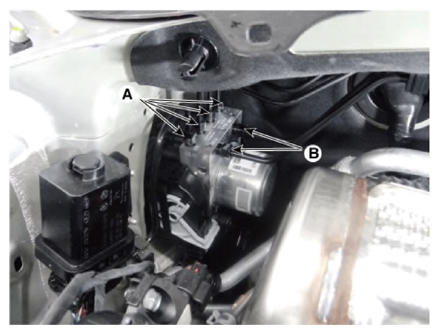

Disconnect the brake lines (A, B) from the ESC by unlocking the nuts counterclockwise with a wrench.
Tightening torque:

A: 12.7 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb.ft)

B (ABS): 12.7 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb.ft)

B (ESC): 18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

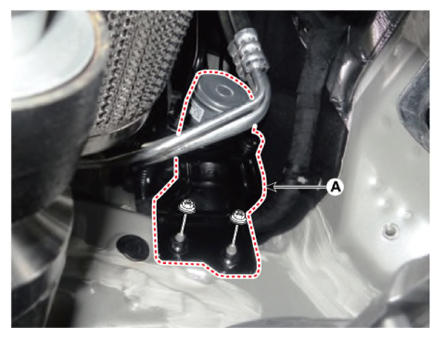

Loosen the ESC bracket nuts, and then remove ESC control unit (A).
Tightening torque:

16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Never attempt to disassemble the ESC module.
- Never drop the ESC module.
