Repair Procedures: Replacement: Bellows

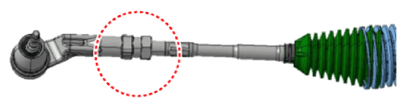

Remove the tie rod end after loosening the nut.
Tightening torque:

49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Before removing the tie rod end, take the measurement or mark with paint the length of the thread.

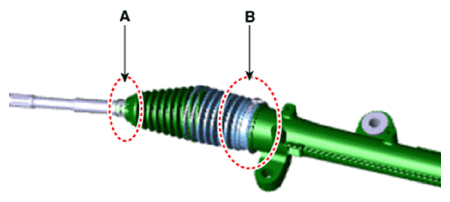

Remove the mounting clip (A, B).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be sure to replace the clip (B) with a new one.

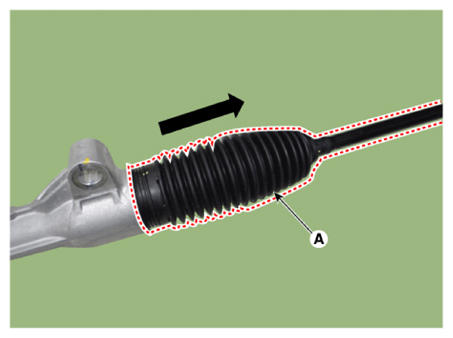

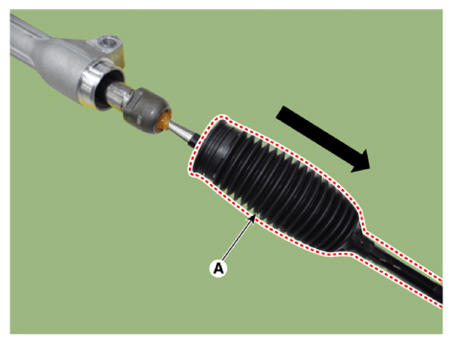

Remove the bellows (A) in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Check the alignment.
(Refer to "FRONT WHEEL ALIGNMENT ").
