Components & Components Location: Components

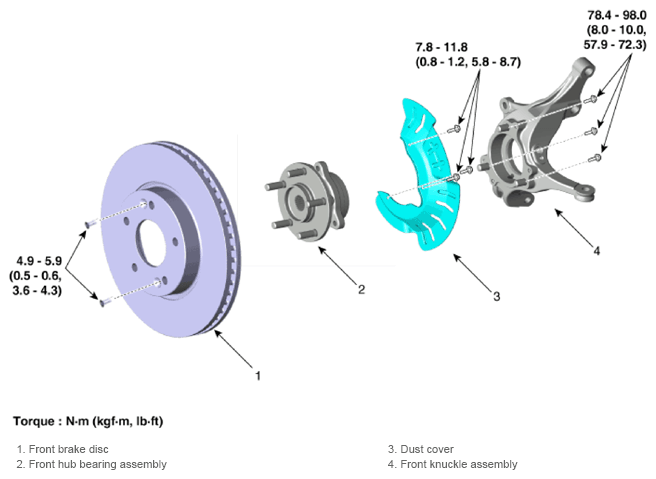

Fig 1: Front Hub - Axle Components Location With Torque Specification
G13481072Courtesy of KIA MOTORS AMERICA, INC.
