Front Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

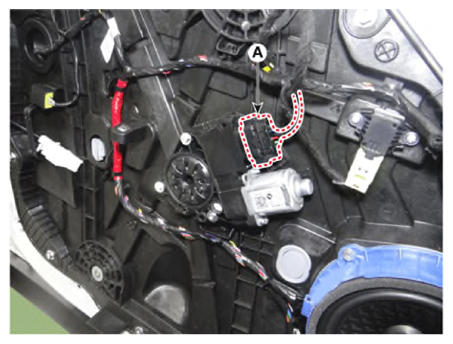

  3. Disconnect the front power window motor connector (A).
    G13663463Courtesy of KIA MOTORS AMERICA, INC.

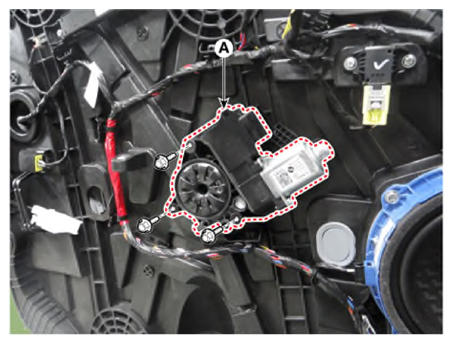

  4. Remove the front power window motor (A) after removing the mounting bolts.
    G13663464Courtesy of KIA MOTORS AMERICA, INC.
