Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

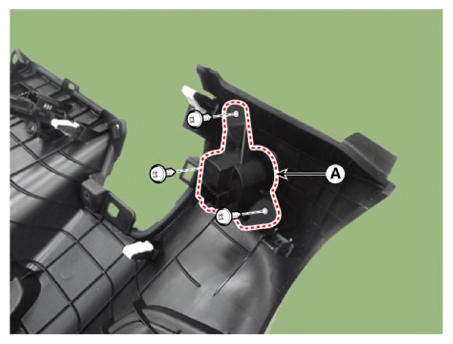

  3. Remove the start/stop button (A) by removing the mounting screws.
    G13663123Courtesy of KIA MOTORS AMERICA, INC.
