Repair Procedures: Removal

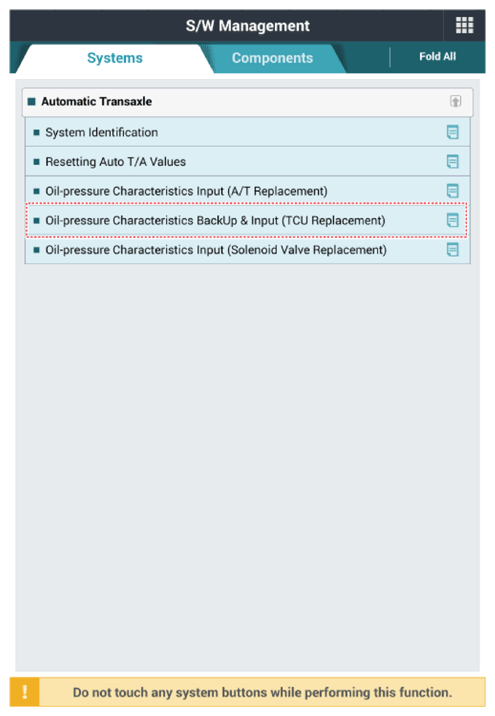

Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new engine control module (ECM).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the battery negative (-) terminal.
Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

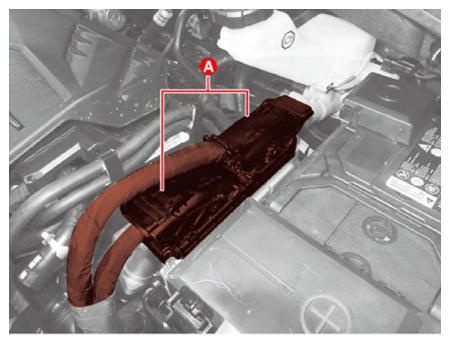

Disconnect the ECM connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

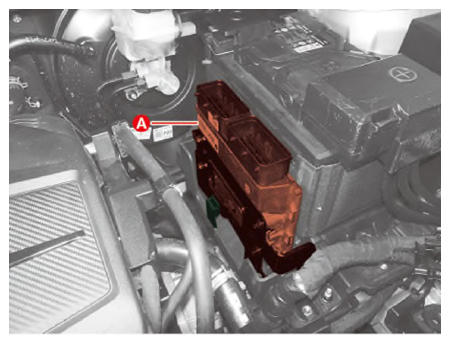

Remove the ECM (A) by pulling it in the direction of arrow after releasing the hooks.

Courtesy of KIA MOTORS AMERICA, INC.

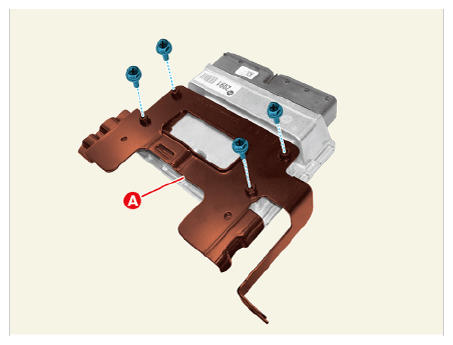

Remove the bracket (A) from the ECM after removing the mounting bolts.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
