Repair Procedures: Replacement: [Removal]

CAUTION: Put on gloves to prevent hand injuries.

NOTE: Use seat covers to avoid damaging any surfaces.

Remove the rear pillar trim.
(Refer to Interior Trim - "REAR PILLAR TRIM ")

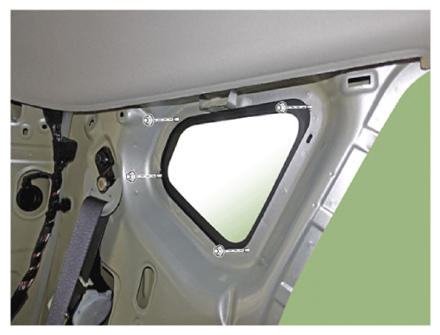

Loosen the quarter fixed glass mounting nuts.
Tightening torque:

3.9 - 4.4 N.m (0.4 - 0.5 kgf.m, 2.9 - 3.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Cut out the quarter fixed glass sealant using the utility knife.
NOTE:
Do not scrape down to the painted surface of the body as bonding strength may get diminished on damaged paint.
Information
- Remove the rubber dam and fasteners from the body.
- Mask off surrounding surfaces before painting.

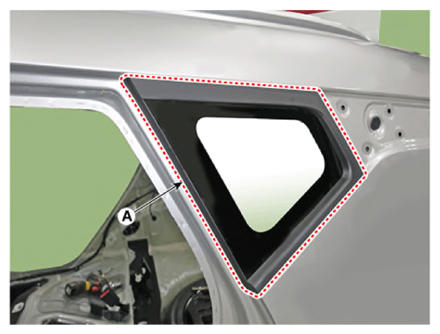

Remove the quarter fixed glass (A).

G13282297

Courtesy of KIA MOTORS AMERICA, INC.
