Removal And Installation

  1. Disconnect the negative battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

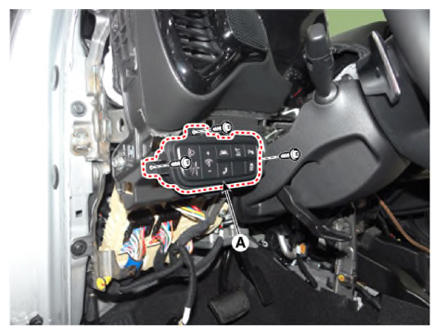

  3. Remove the side crash pad switch panel (A) after loosening the mounting screws.
    G13281846Courtesy of KIA MOTORS AMERICA, INC.

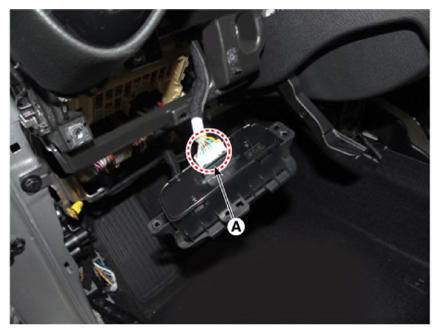

  4. Disconnect the side crash pad switch connector (A).
    G13281847Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
