Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 10

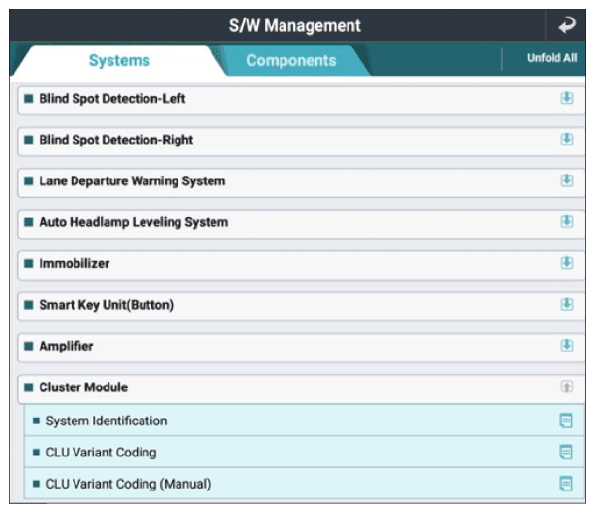

G13285981Courtesy of KIA MOTORS AMERICA, INC.

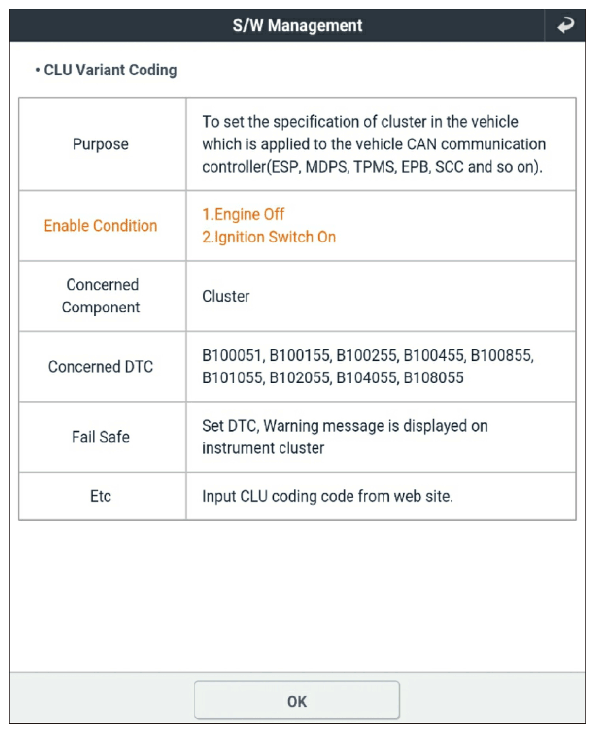

G13285982Courtesy of KIA MOTORS AMERICA, INC.

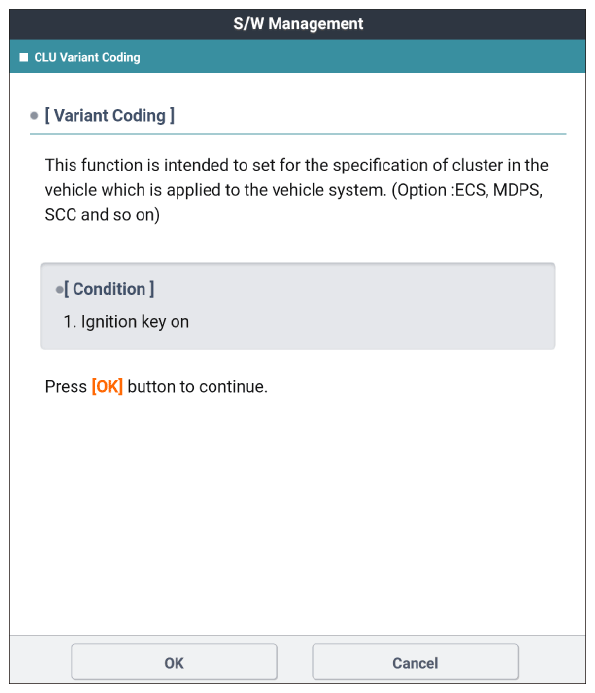

G13285983Courtesy of KIA MOTORS AMERICA, INC.

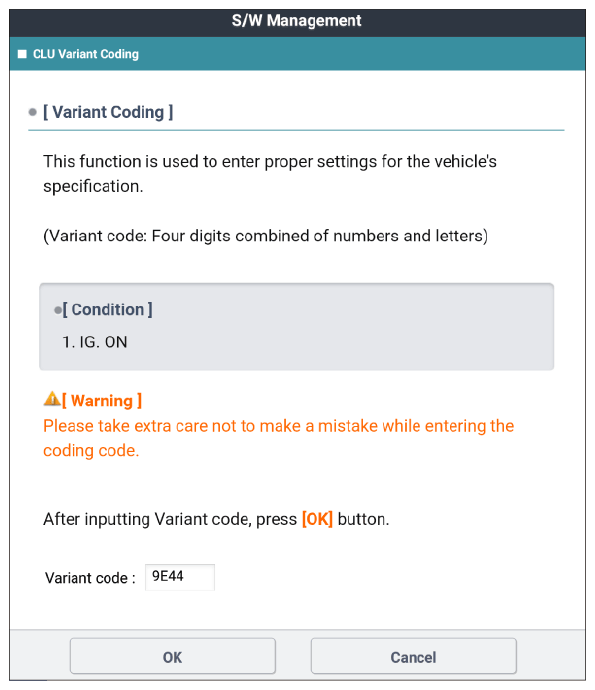

G13285984Courtesy of KIA MOTORS AMERICA, INC.

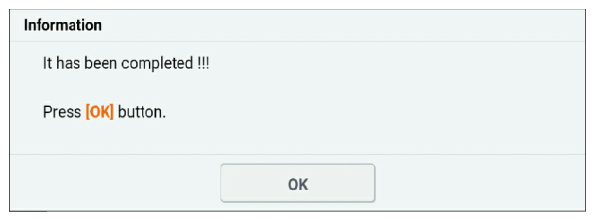

G13285985Courtesy of KIA MOTORS AMERICA, INC.

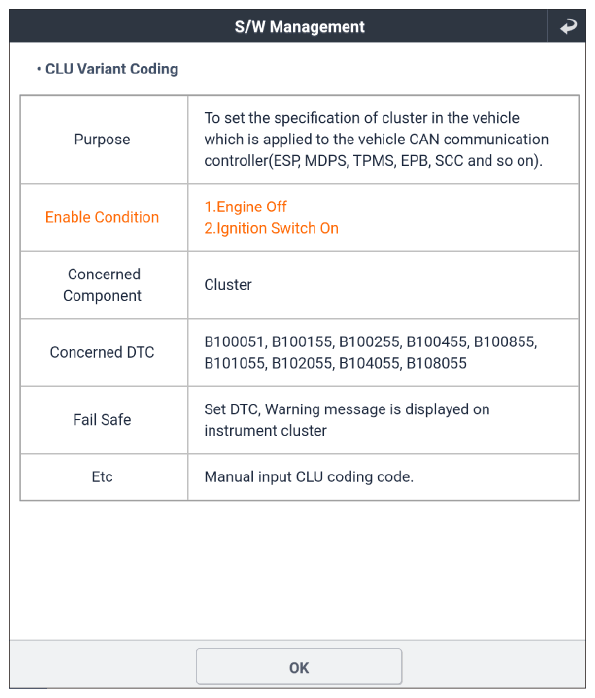

G13285986Courtesy of KIA MOTORS AMERICA, INC.

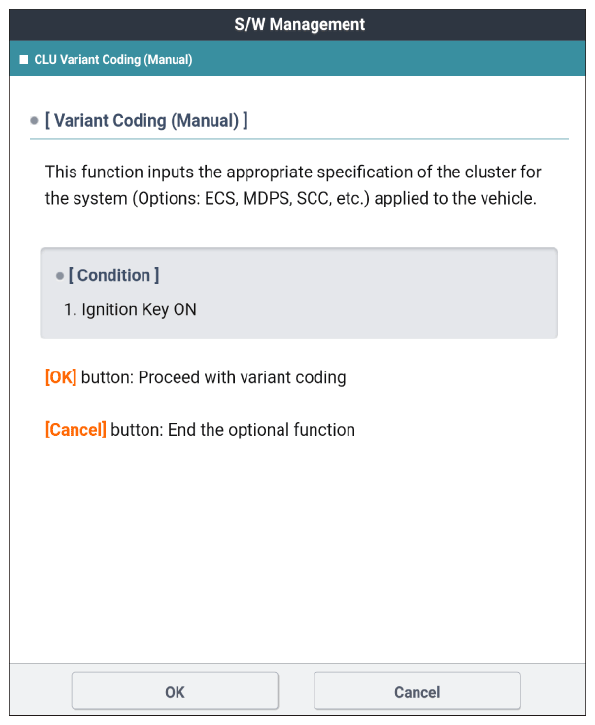

G13285987Courtesy of KIA MOTORS AMERICA, INC.

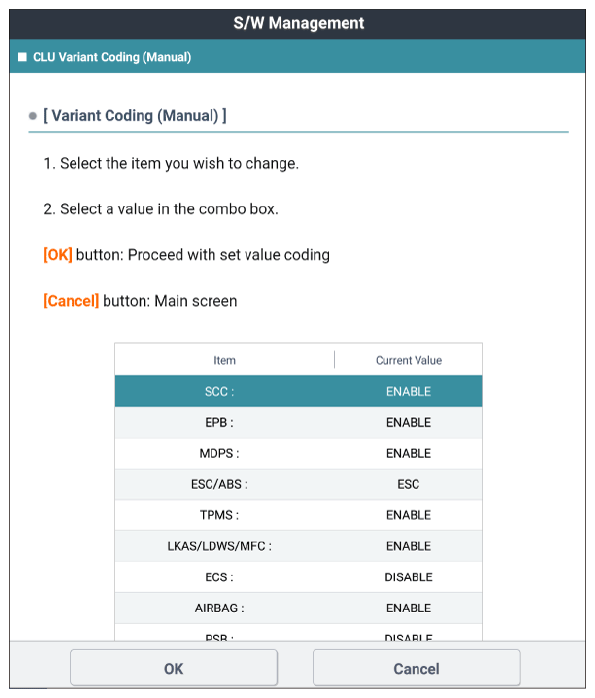

G13285988Courtesy of KIA MOTORS AMERICA, INC.

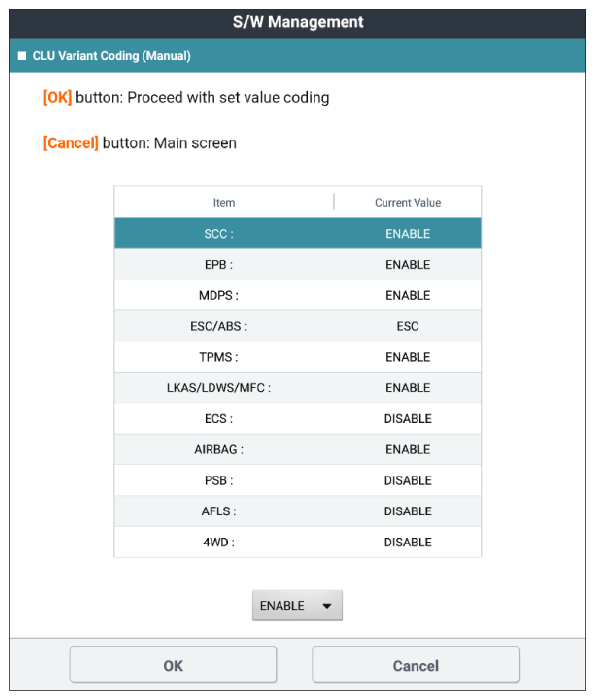

G13285989Courtesy of KIA MOTORS AMERICA, INC.

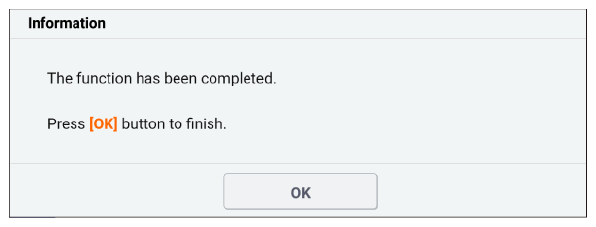

G13285990Courtesy of KIA MOTORS AMERICA, INC.
