Vehicle S/W Management

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.	Fig.1 to 10

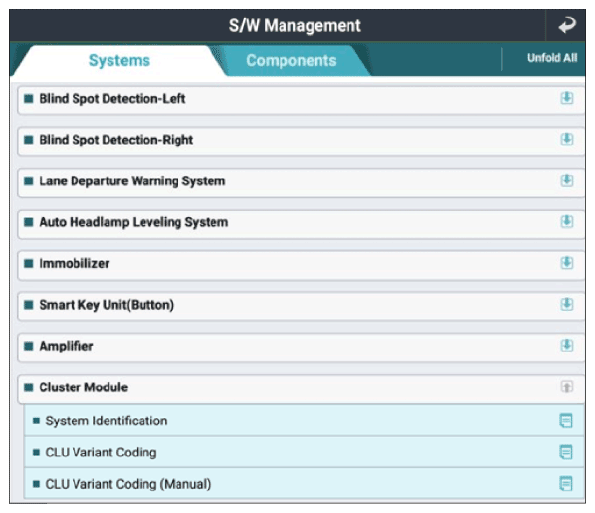

G13286035

Courtesy of KIA MOTORS AMERICA, INC.

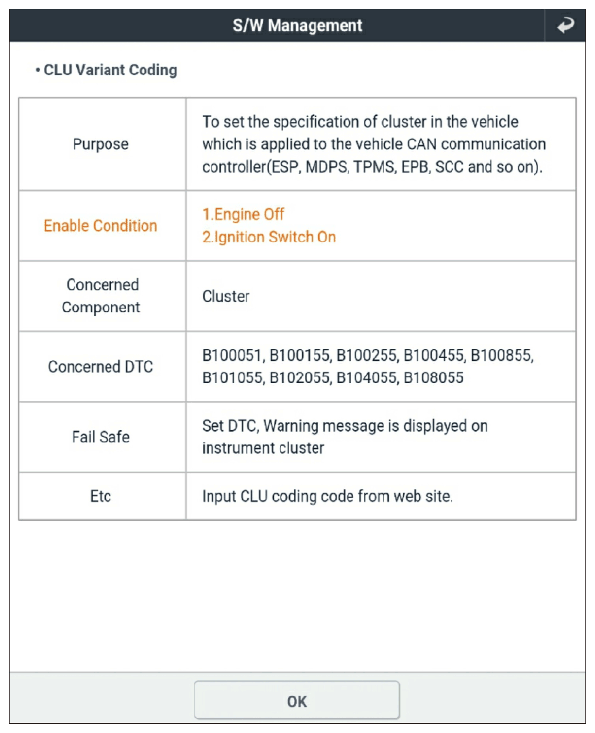

G13286036

Courtesy of KIA MOTORS AMERICA, INC.

G13286037

Courtesy of KIA MOTORS AMERICA, INC.

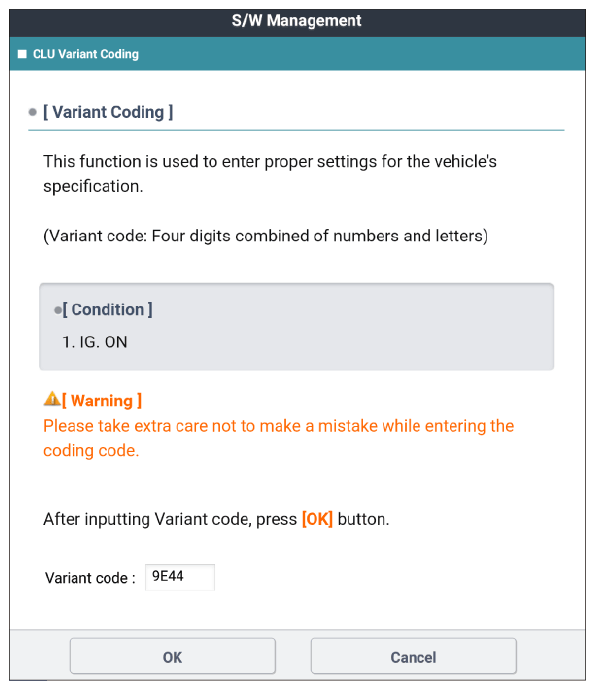

G13286038

Courtesy of KIA MOTORS AMERICA, INC.

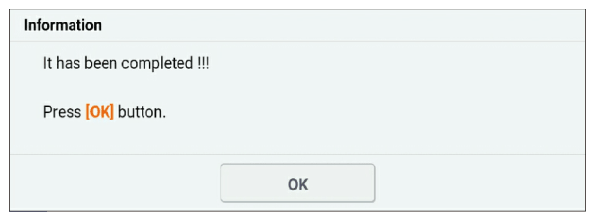

G13286039

Courtesy of KIA MOTORS AMERICA, INC.

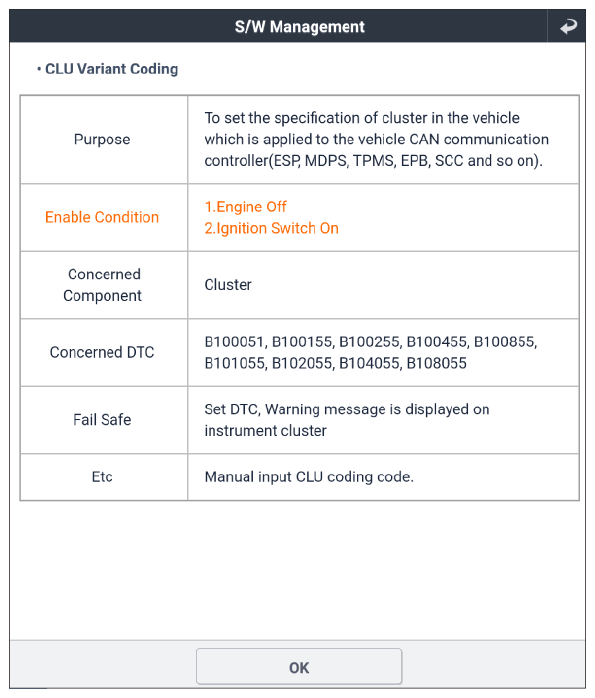

G13286040

Courtesy of KIA MOTORS AMERICA, INC.

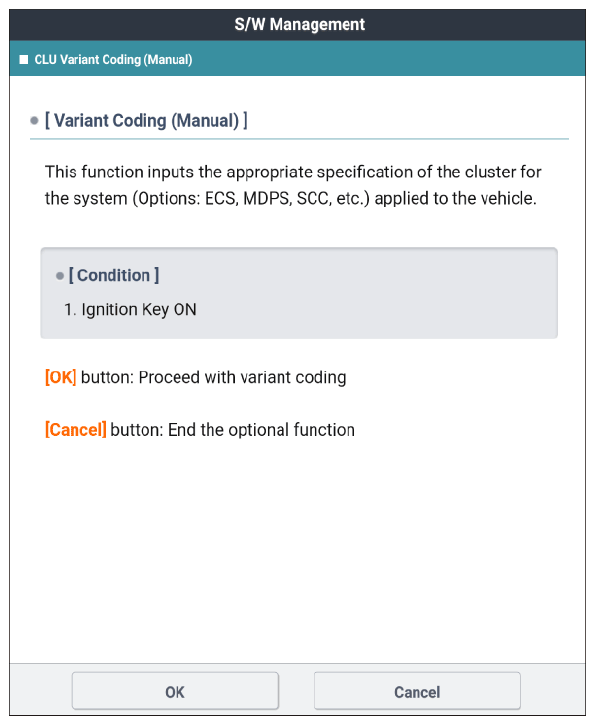

G13286041

Courtesy of KIA MOTORS AMERICA, INC.

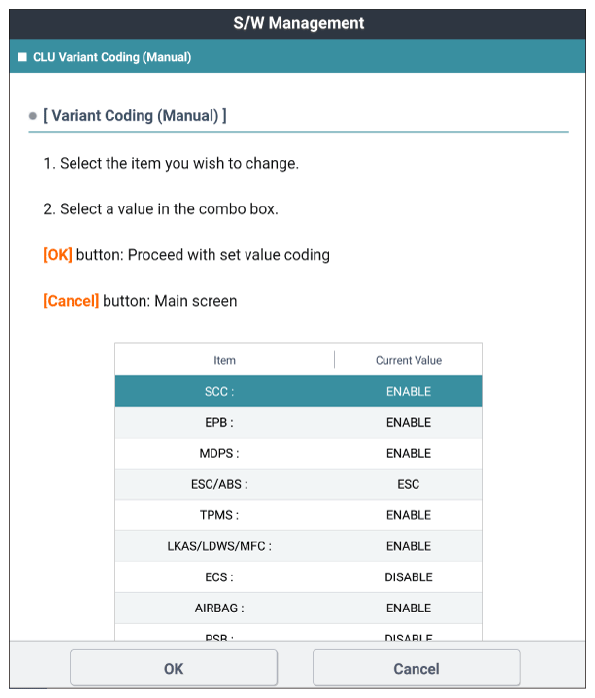

G13286042

Courtesy of KIA MOTORS AMERICA, INC.

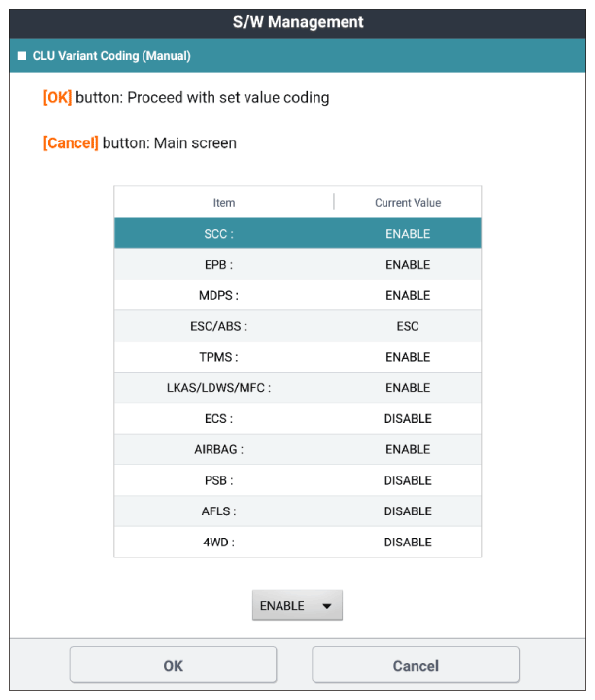

G13286043

Courtesy of KIA MOTORS AMERICA, INC.

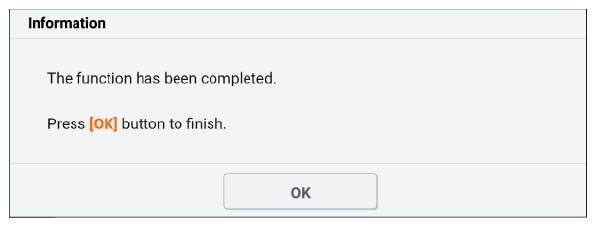

G13286044

Courtesy of KIA MOTORS AMERICA, INC.
