Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 10

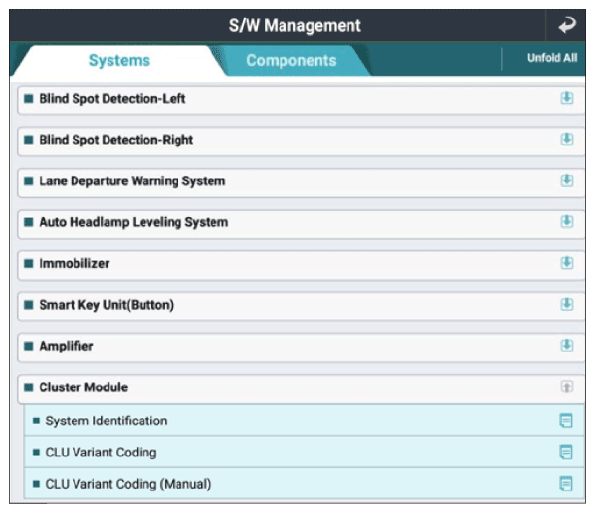

G13286207Courtesy of KIA MOTORS AMERICA, INC.

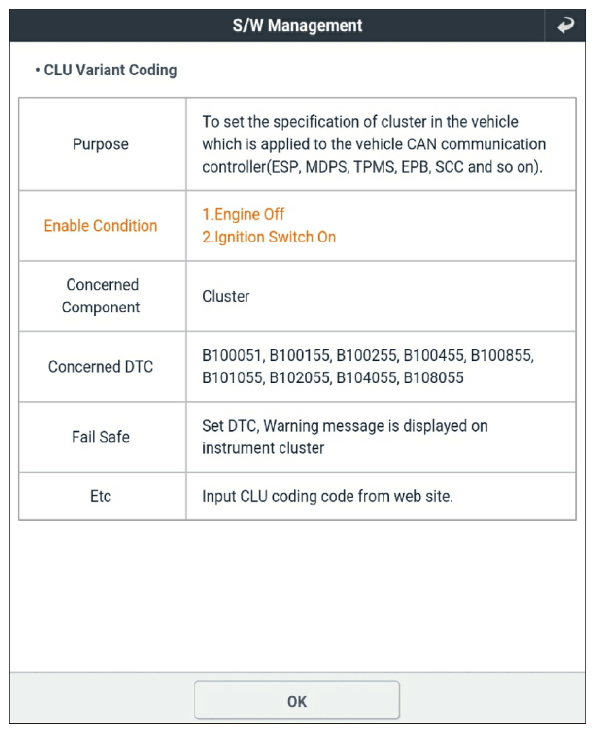

G13286208Courtesy of KIA MOTORS AMERICA, INC.

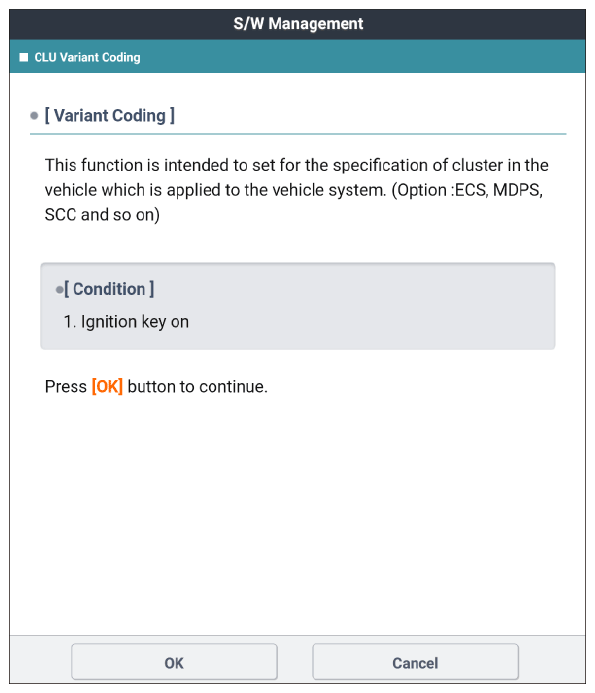

G13286209Courtesy of KIA MOTORS AMERICA, INC.

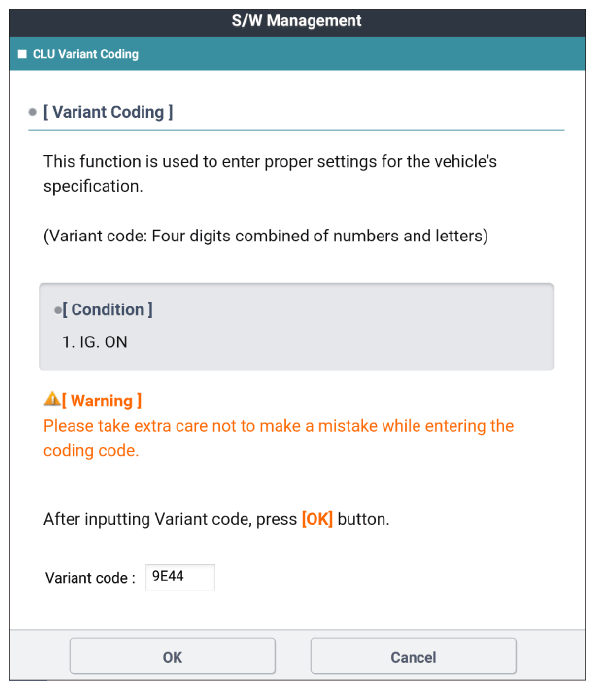

G13286210Courtesy of KIA MOTORS AMERICA, INC.

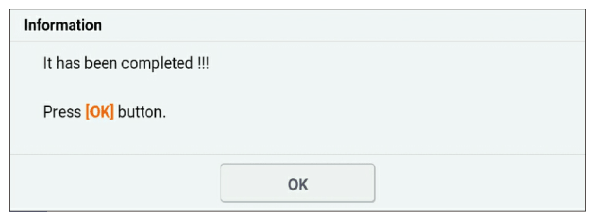

G13286211Courtesy of KIA MOTORS AMERICA, INC.

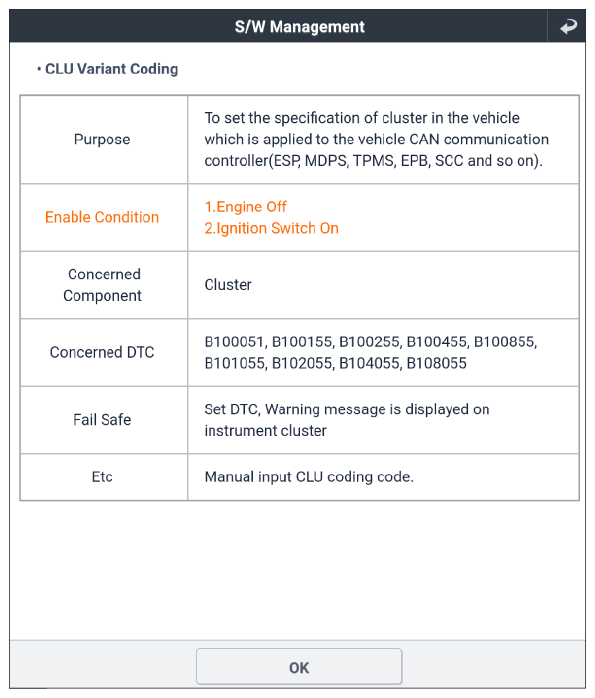

G13286212Courtesy of KIA MOTORS AMERICA, INC.

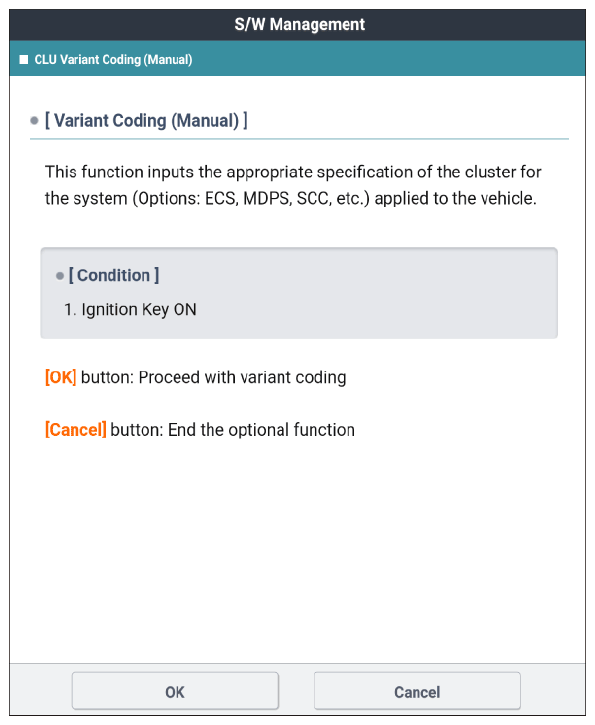

G13286213Courtesy of KIA MOTORS AMERICA, INC.

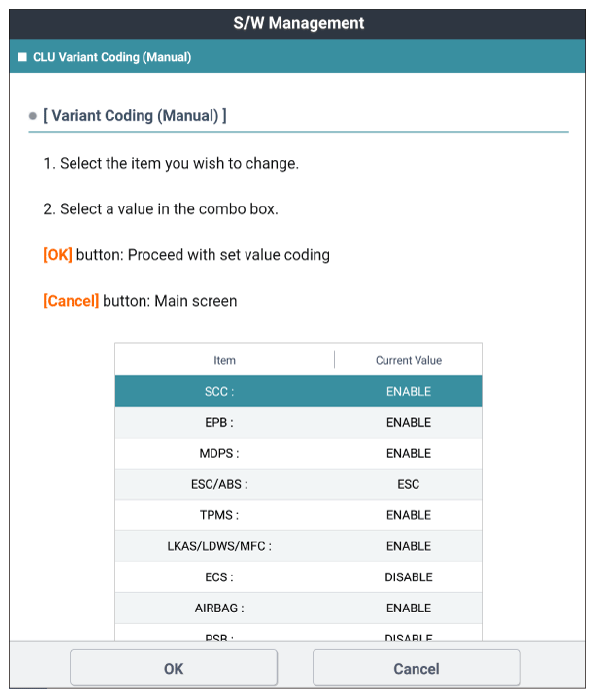

G13286214Courtesy of KIA MOTORS AMERICA, INC.

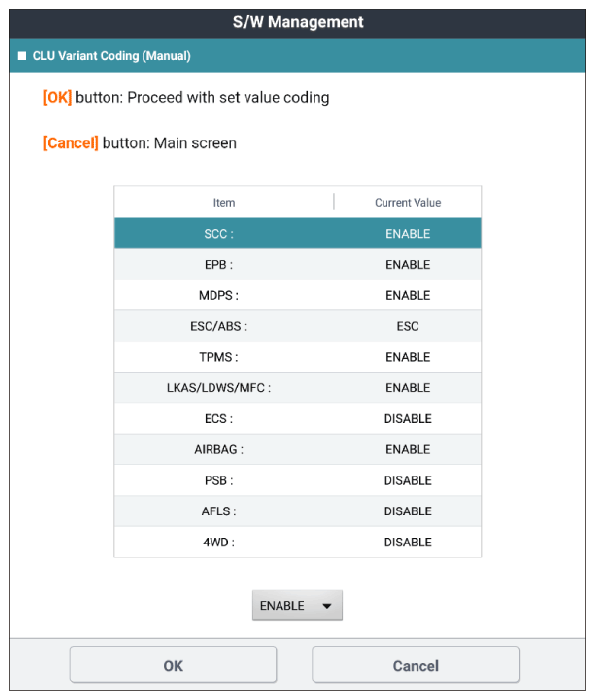

G13286215Courtesy of KIA MOTORS AMERICA, INC.

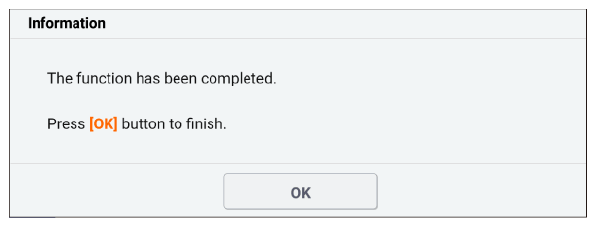

G13286216Courtesy of KIA MOTORS AMERICA, INC.
