Repair Procedures: Installation

  1. Install in the reverse order of removal.

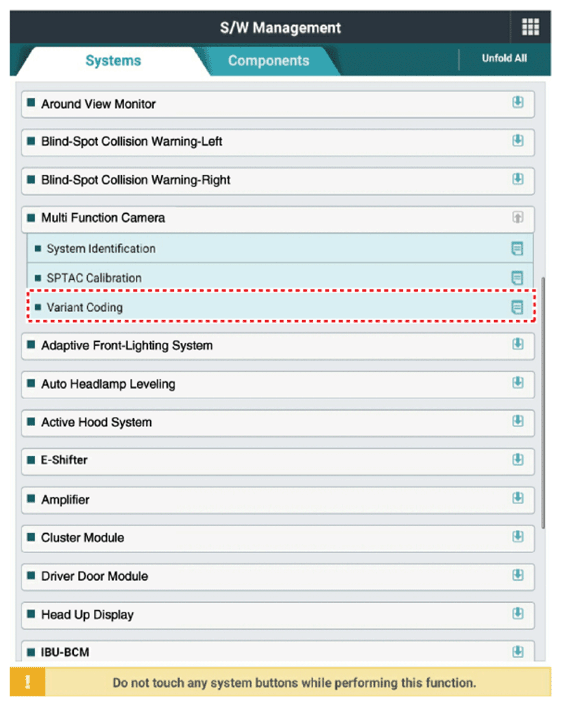

  2. When if replacing the front view camera with a new one, perform the "Variant Coding" procedure by using the KDS.
    G13283124Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the front view camera unit calibration.

    (Refer to Front View Camera Unit - " ADJUSTMENT  ")
