Repair Procedures: Disassembly

  1. Remove the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  2. Remove the TJ joint assembly.

    (Refer to Driveshaft Assembly - "TJ JOINT ")

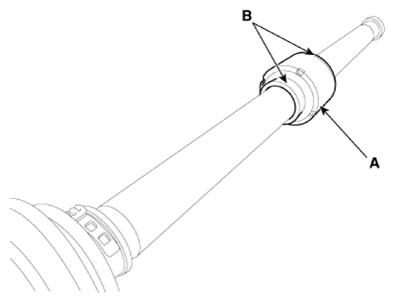

  3. Remove the remove the both side of band (B) of the dynamic damper (A).
    G13281224Courtesy of KIA MOTORS AMERICA, INC.

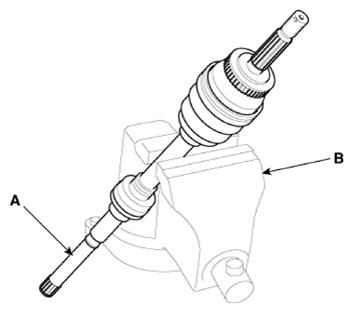

  4. Fix the driveshaft (A) with a vice (B) as illustrated.
    G13281225Courtesy of KIA MOTORS AMERICA, INC.
  5. Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper when the dynamic damper is removed.

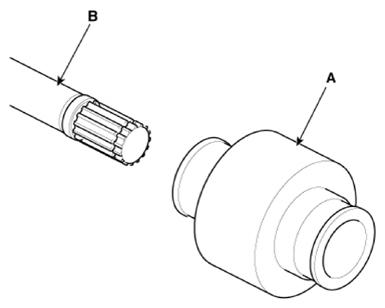

  6. Separate the dynamic damper (A) from the shaft (B) carefully.
G13281226Courtesy of KIA MOTORS AMERICA, INC.
