Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

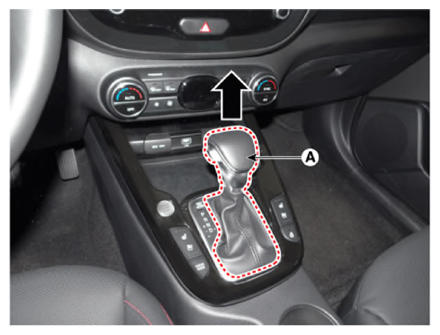

  2. Remove the knob (A) by pulling it in the direction of the arrow after separating the boots from the console upper cover.
    G13282407Courtesy of KIA MOTORS AMERICA, INC.

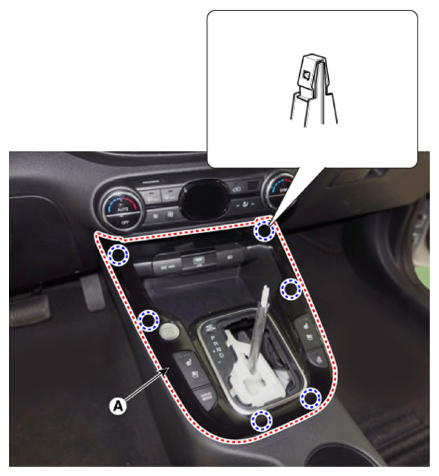

  3. Remove the console upper cover (A).
    G13282408Courtesy of KIA MOTORS AMERICA, INC.

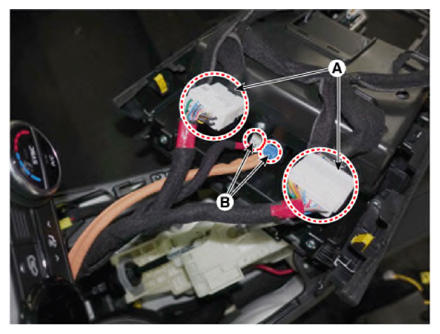

  4. Disconnect the extension connector (A) and multimedia jack connectors (B).
    G13282409Courtesy of KIA MOTORS AMERICA, INC.

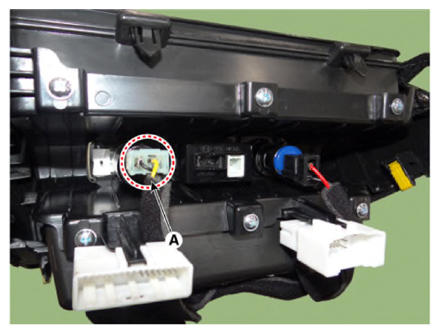

  5. Disconnect the connector (A) from the USB charger.
    G13282410Courtesy of KIA MOTORS AMERICA, INC.

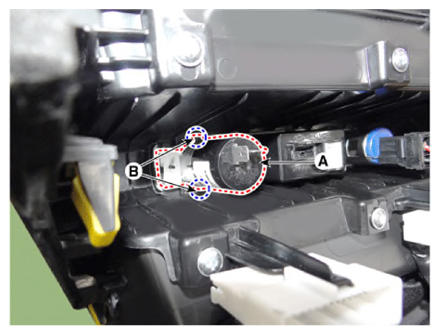

  6. Remove the USB charger (A) by pressing the both sides of hooks (B).
G13282411Courtesy of KIA MOTORS AMERICA, INC.
