Liftgate Lock Module Inspection

Remove the liftgate trim.
(Refer to Body - "LIFTGATE TRIM ")

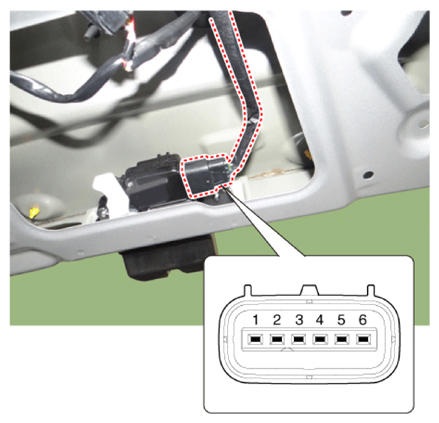

Disconnect the connectors from the actuator.

Courtesy of KIA MOTORS AMERICA, INC.

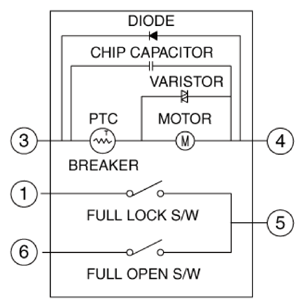

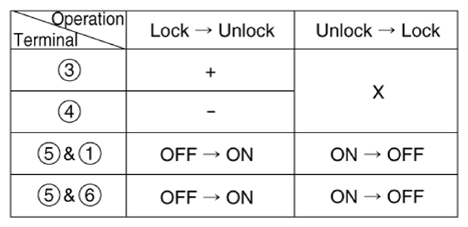

Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
