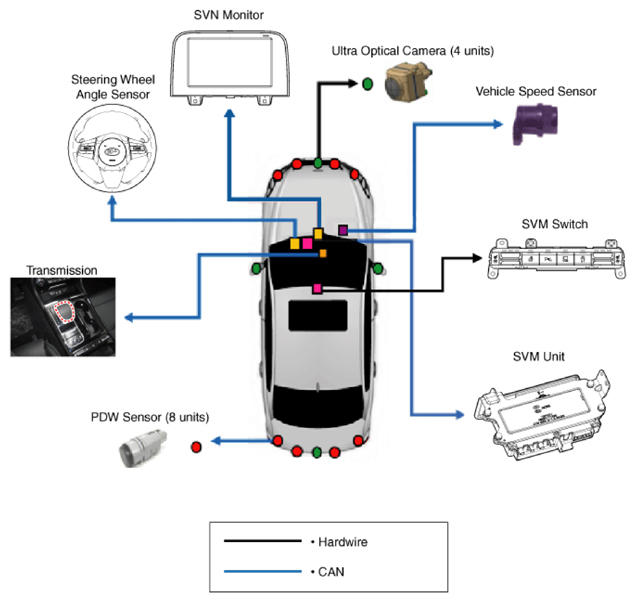

Components & Components Location: Components: Notes

Courtesy of KIA MOTORS AMERICA, INC.

Information

1. SVM unit basically transmits data via C-CAN only.
   • Steering wheel angle sensor: C-CAN
   • Vehicle speed sensor: C-CAN
2. It functions as a gateway of C-CAN ↔ MM-CAN in cluster.

   e.g. The signal of unit using MM-CAN is transmitted after converting to C-CAN in cluster.

   • User menu option: Cluster (SVN monitor, MM-CAN)
   • Transmission: TCU
   • PDW sensor: IBU
