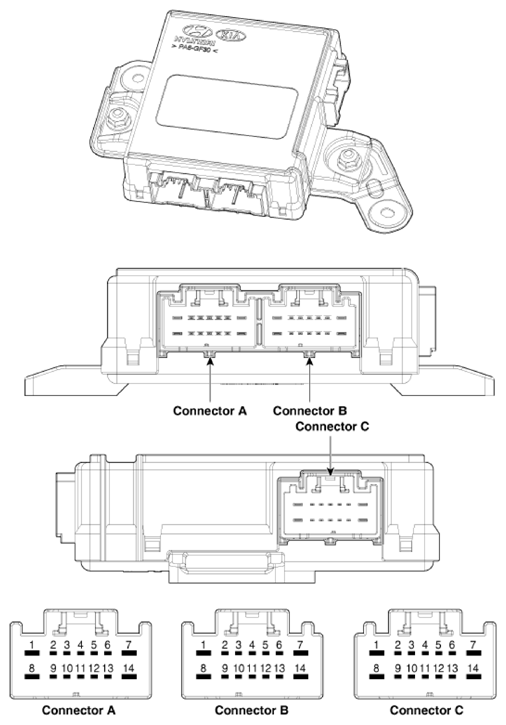

| 1 |
Power supply |
Cinching motor (+) |
Spindle motor (RH)_Close (-) |
| 2 |
Illumination (Liftgate inner switch) |
Liftgate full open switch |
Hall sensor (RH)_Power |
| 3 |
- |
Liftgate full lock switch |
Spindle (LH) shild_Ground |
| 4 |
B-CAN (High) |
Liftgate half lock switch |
Hall sensor (RH)_Ground |
| 5 |
B-CAN (Low) |
Home position switch_Ground |
Spindle (RH) shild_Ground |
| 6 |
Buzzer |
Liftgate latch switch _Ground |
Hall sensor (LH)_Power |
| 7 |
- |
System ground |
Spindle motor (LH)_Close (+) |
| 8 |
Liftgate motor |
Cinching motor (-) |
Spindle motor (RH)_Close (+) |
| 9 |
- |
Liftgate open/close switch |
Hall sensor 1 (RH) |
| 10 |
Gear 'N' Position |
Liftgate inner switch |
Hall sensor 2 (RH) |
| 11 |
- |
Home position switch |
Hall sensor (LH)_Ground |
| 12 |
Antipinch strip (LH)_Power |
Antipinch strip (LH)_Ground |
Hall sensor 1 (LH) |
| 13 |
Antipinch strip (RH)_Power |
Antipinch strip (RH)_Ground |
Hall sensor 2 (LH) |
| 14 |
- |
Power ground |
Spindle motor (LH)_Close (-) |
