System Inspection

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 4

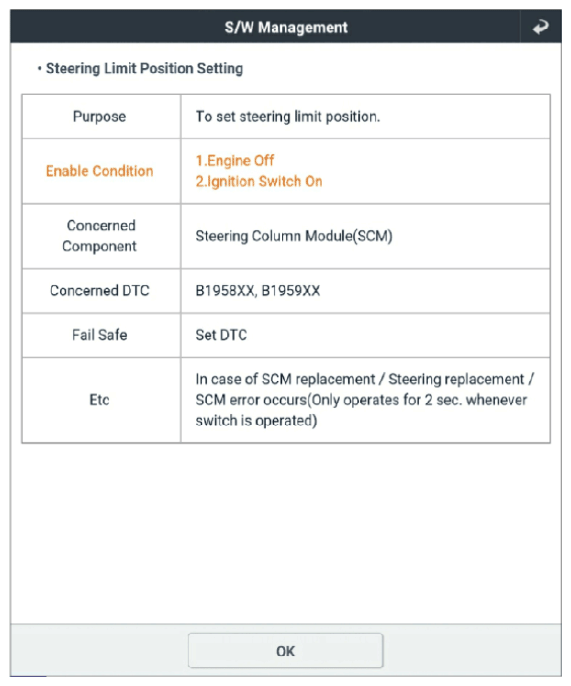

G13430709Courtesy of KIA MOTORS AMERICA, INC.

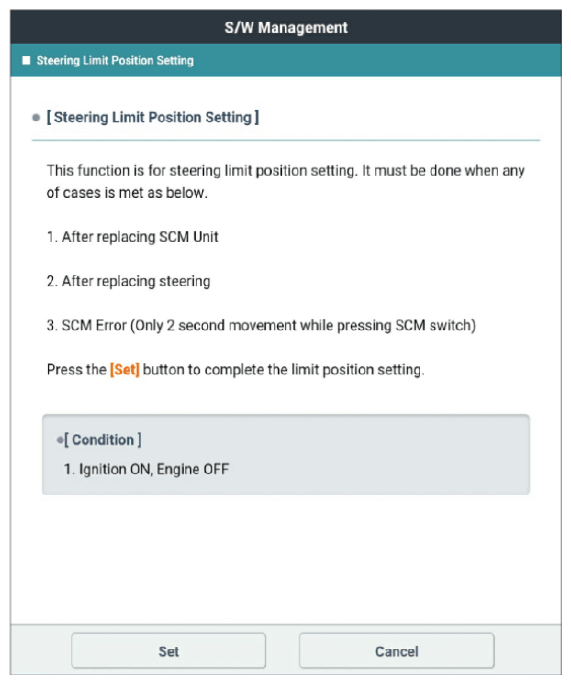

G13430710Courtesy of KIA MOTORS AMERICA, INC.

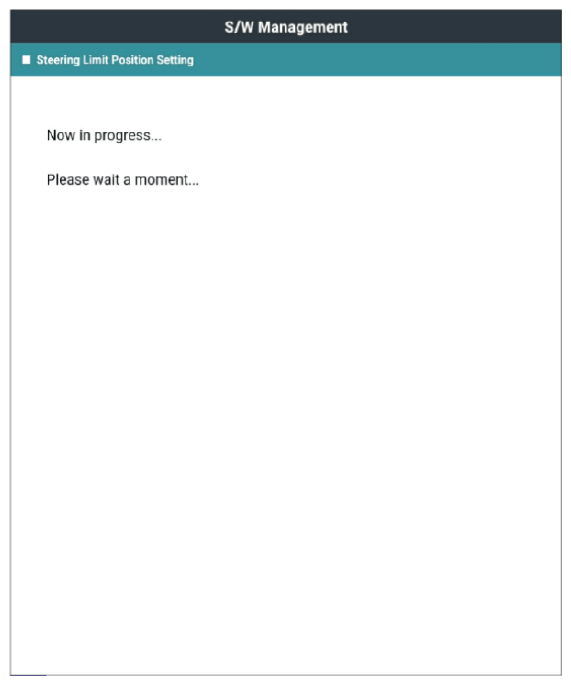

G13430711Courtesy of KIA MOTORS AMERICA, INC.

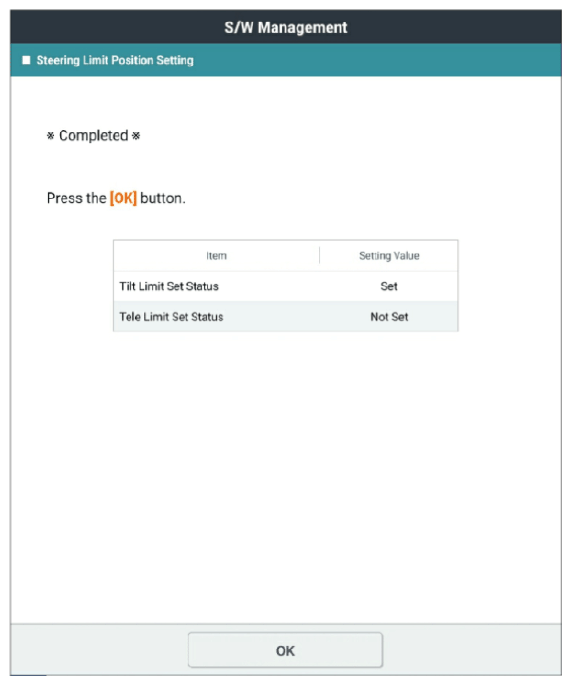

G13430712Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
