Disassembly And Assembly

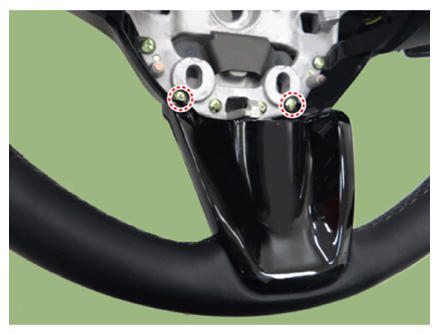

  1. Loosen the screw and then remove the upper cover.
    G13424793Courtesy of KIA MOTORS AMERICA, INC.
    G13424794Courtesy of KIA MOTORS AMERICA, INC.
    G13424795Courtesy of KIA MOTORS AMERICA, INC.

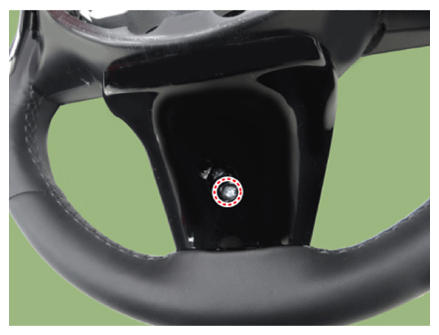

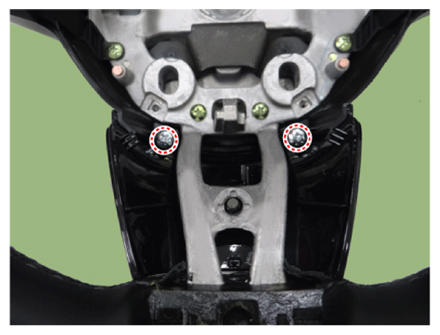

  2. Loosen the damper screw and then remove the damper.

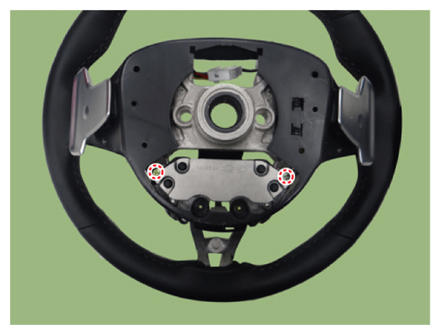

    G13424796Courtesy of KIA MOTORS AMERICA, INC.

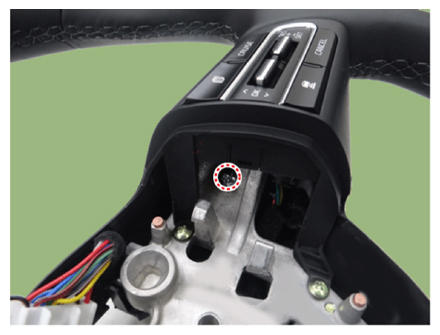

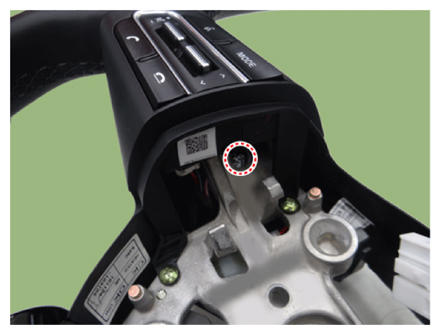

  3. Loosen the paddle shift screw.
    G13424797Courtesy of KIA MOTORS AMERICA, INC.
    G13424798Courtesy of KIA MOTORS AMERICA, INC.

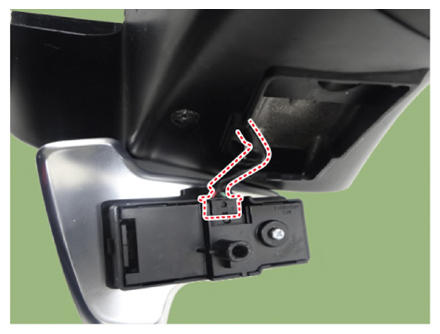

  4. Using the driver, disconnect the paddle shift connector.
    G13424799Courtesy of KIA MOTORS AMERICA, INC.

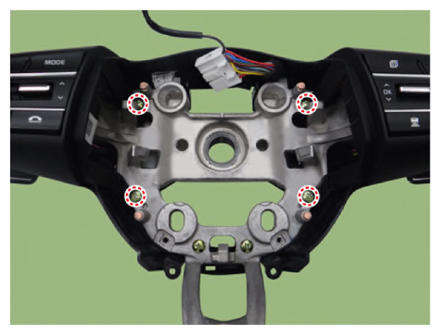

  5. Loosen the remote control switch screw and then separate the remote control switch.
    G13424800Courtesy of KIA MOTORS AMERICA, INC.

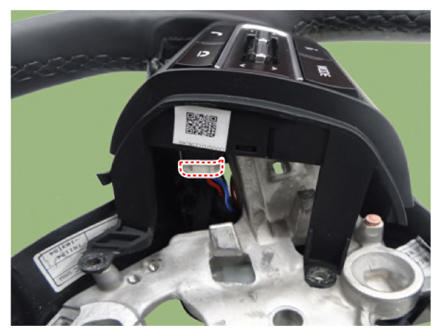

  6. Disconnect the remote control switch connector and then remove the remote control switch & lower cover.
    G13424801Courtesy of KIA MOTORS AMERICA, INC.

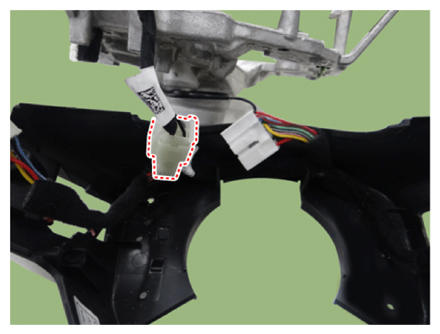

  7. Disconnect the connector and then remove the steering wheel body.
    G13424802Courtesy of KIA MOTORS AMERICA, INC.
  8. Install in the reverse order of removal.
