Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

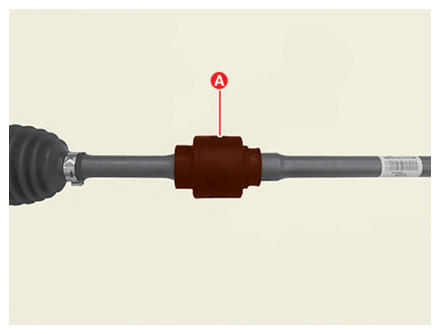

  1. Install the dynamic damper (A).
    G13424429Courtesy of KIA MOTORS AMERICA, INC.

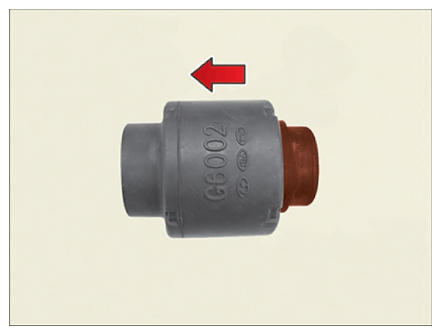

    NOTE: When installing the dynamic damper, install it in the direction of the arrow. Installing in the wrong direction can cause secondary quality problems.
    G13424430Courtesy of KIA MOTORS AMERICA, INC.

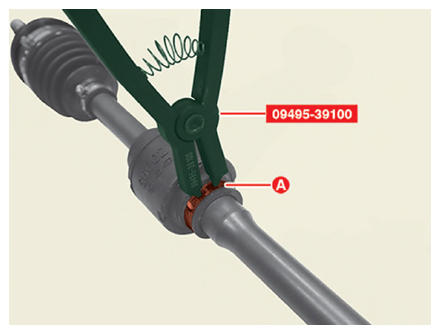

  2. Install the dynamic damper band (A) using SST (09495-39100).
    G13424431Courtesy of KIA MOTORS AMERICA, INC.

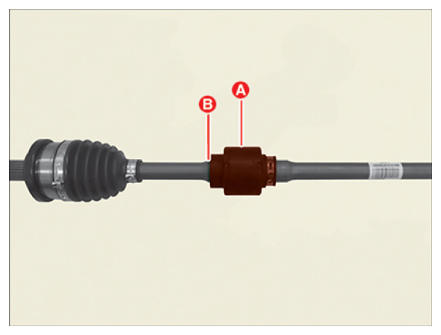

    NOTE: When installing the dynamic damper (A), make sure that the damper fits into the groove (B).
    G13424432Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the transaxle side joint.

    (Refer to Driveshaft Assembly - "JOINT ASSEMBLY (TRANSAXLE SIDE) ")

  4. Install the front driveshaft.

    (Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
