Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Kia Rio. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Wear gloves to protect hands from injury.

Information

When removing and installing the tail gate, an assistant is needed.

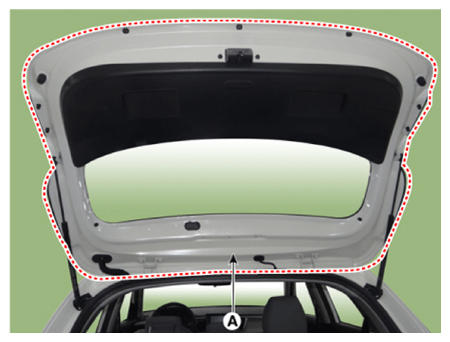

Remove the tailgate trim (A).
(Refer to liftgate - "LIFTGATE TRIM ")

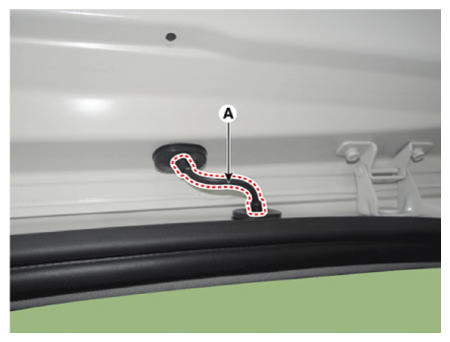

Disconnect the washer nozzle hose (A) and high mounted stop lamp connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

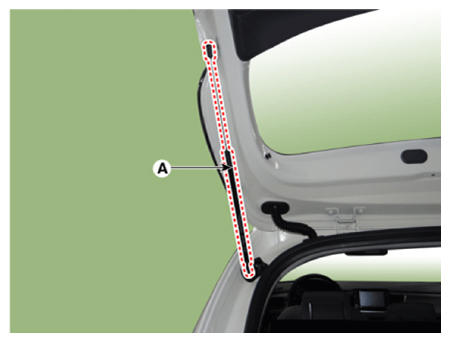

Using a screwdriver, lift the socket clips (A) up slightly on both ends of the tailgate lifter (B).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the tailgate assembly (A) after loosening the mounting bolts.
Tightening torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the tail gate locks/unlocks and opens/closes properly.
- Adjust the tail gate alignment.
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
