Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

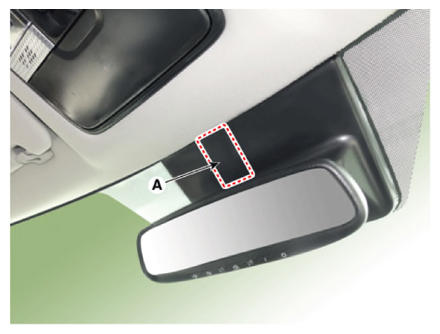

  2. Remove the inside rear view mirror cover (A).
    G13312845Courtesy of KIA MOTORS AMERICA, INC.

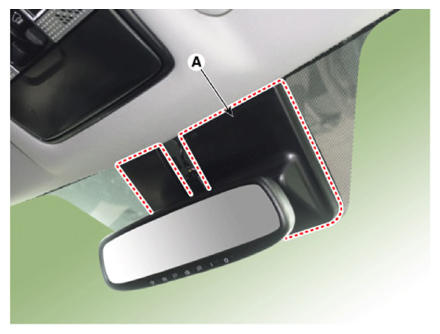

  3. Remove the camera unit cover (A).
    G13312846Courtesy of KIA MOTORS AMERICA, INC.

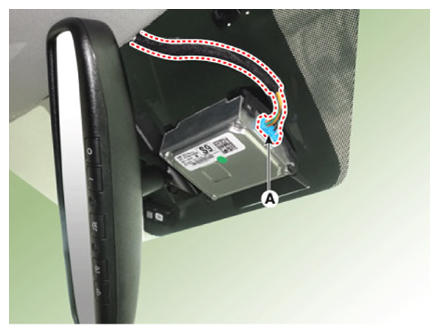

  4. Disconnect the front view camera unit connector (A).
    G13312847Courtesy of KIA MOTORS AMERICA, INC.

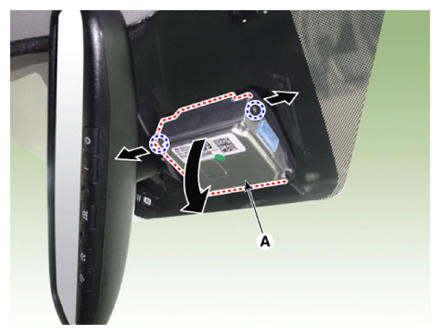

  5. Remove the front view camera unit (A) by releasing the hooks.
    G13312848Courtesy of KIA MOTORS AMERICA, INC.
